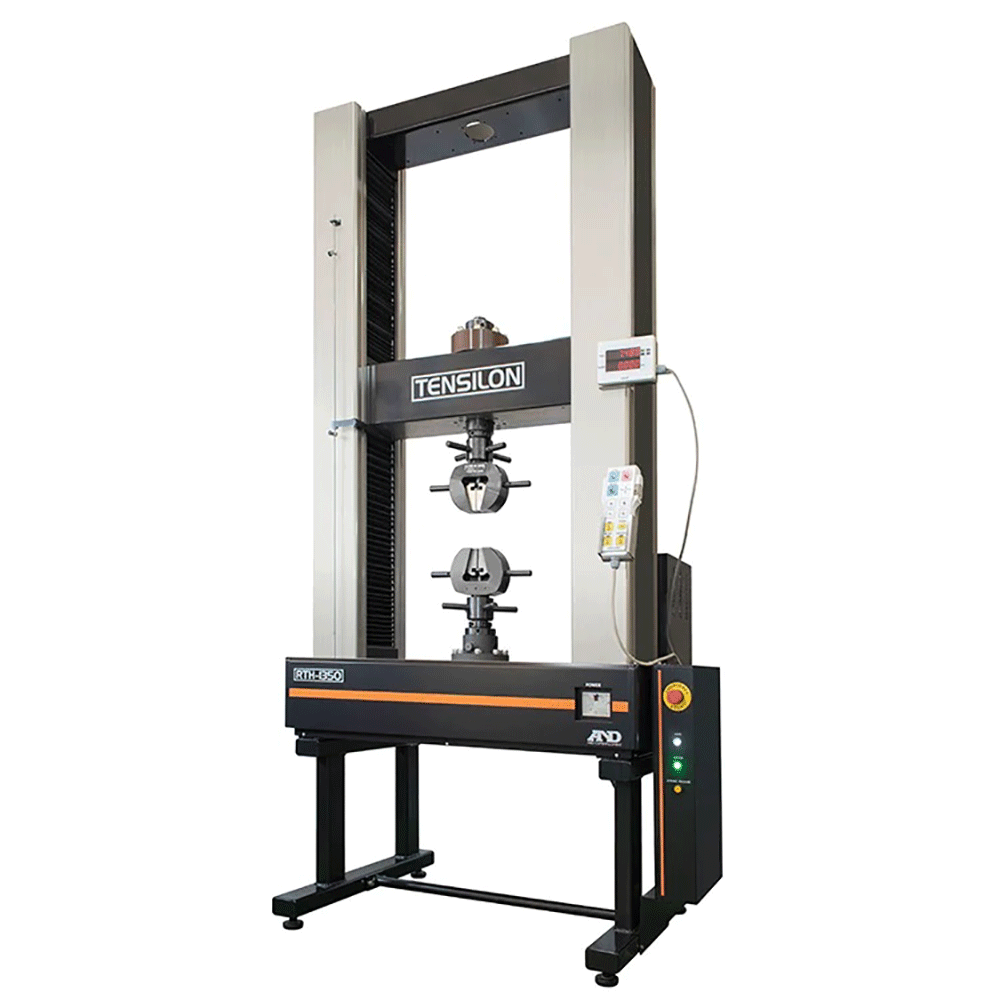

RTH Series TENSILON (Universal Material Testing Instrument)

Name: RTH Series TENSILON (Universal Material Testing Instrument)
Brand: TENSILON
SKU: 10851
Rating: 5.00 (1 reviews)

Rated 5.00 out of 5 based on 1 customer rating

(1 customer review)

Model: RTH Series
Brand: TENSILON

Compare

Add to wishlist

Category: Laboratory Equipment

Description

Features
A&D’s world-class Class 0.5 testing machine Widened velocity range of 0.0001~1500mm/min Achieves high-speed sampling of 0.2msec and does not miss instantaneous load changes Low noise: Consideration for testing environment

Color Touch panel

The color touch panel offers superb visibility and easier operation

TACT (TENSILON Advanced Controller for Testing)

“TACT” data processing system, optimized for TENSILON.
Capable of industry’s fastest sampling speed of 0.2 msec

The TACT series has excellent data analysis, calculation, and data storage functions in addition to the enhanced operability of the testing machine itself.

Display

Detachable digital display for load and displacement indication. This display can be attached with magnets to any part of the machine and it does not obstruct the user when fixing a sample to the jig or testing a sample as its position can be freely adjusted.

Fixing method	Magnet attachment method
Display data	Load/displacement
Load	6-digit indication
Displacement	6-digit indication

Load

6-digit indication
The indication unit will be automatically selected from kN, N, mN or N.

Displacement

1/1000 display at minimum
The detachable display offers a more organized and efficient workspace.

Commander

Handy compact commander for testing machine control. This commander can be attached to the top, bottom, left or right of the testing machine digital display for load and displacement indication.

The commander’s manual operation buttons are ergonomically designed with bright colors and varied sizes for superior ease-of-use. The jog dial on the right hand side of the commander offers extra flexible control and the operator can move the crosshead up and down by manually rotating this dial.

Applied testing devices for temperature / environment test

· Constant temperature / constant humidity testing devices
· High temperature testing devices
· Ultra-low temperature testing devices
· High humidity in gas atmosphere testing devices
· High humidity in vacuum testing devices
· Dipping testing devices

Load frame table

Dimensions (mm)
RTH-1350	897(W)x650(D)x460(H)
RTH-1225/1310 RTI-1225-1310	710(W)x555(D)x630(H)

Specifications

	RTH-2430	RTH-2410	RTH-1350	RTH-1310	RTH-1225
Motor	Digital servo mechanizm
Maximum Capacity	300kN	100kN	50kN	10kN	2.5kN
Effective test width	590mm			420mm
Crosshead speed range	0.0001～500mm/min	0.0001～1000mm/min		0.0001～1200mm/min	0.0001～1500mm/min
Crosshead speed accuracy	±0.1%
Crosshead arbitrary speed	0.0001mm/min step within the range of crosshead speed
Crosshead position accuracy	±0.1% of rating　(±0.01mm when rating is less than 10mm)
Crosshead return speed	300, 600 mm/min	600, 1200 mm/min			825, 1600 mm/min
Load measurement accuracy	±1% of rating (within range of 1/1 – 1/1000 of load cell rating)	±0.5% of rating (within range of 1/1 – 1/1000 of load cell rating)
Load calibration	One touch operation load calibration with the calibration circuit embedded in the load cell. Equipped with a load cell rating discrimination function.
Sampling speed	0.2msec
Noise	70dBA or less		65dBA or less		60dBA or less
Dimensions (WxDxH)	1144x1040x2560mm	1144×700×2275mm	987×610×1655mm	785×451×1555mm
Weight	1450kg	800kg	350kg	130kg
Power consumption/ Power supply/ Breaker capacity	5.1kW/ 7.6kVA/ 40A	3.1kW/ 6.0kVA/ 30A	1.6kW/ 3.3kVA/ 20A	475W/ 1.7kVA/ 15A	275W/ 700VA/ 15A
Ambient temperature & humidity	Temperature: 5~40℃、Humidity：20~80%RH (No condensation allowed)
