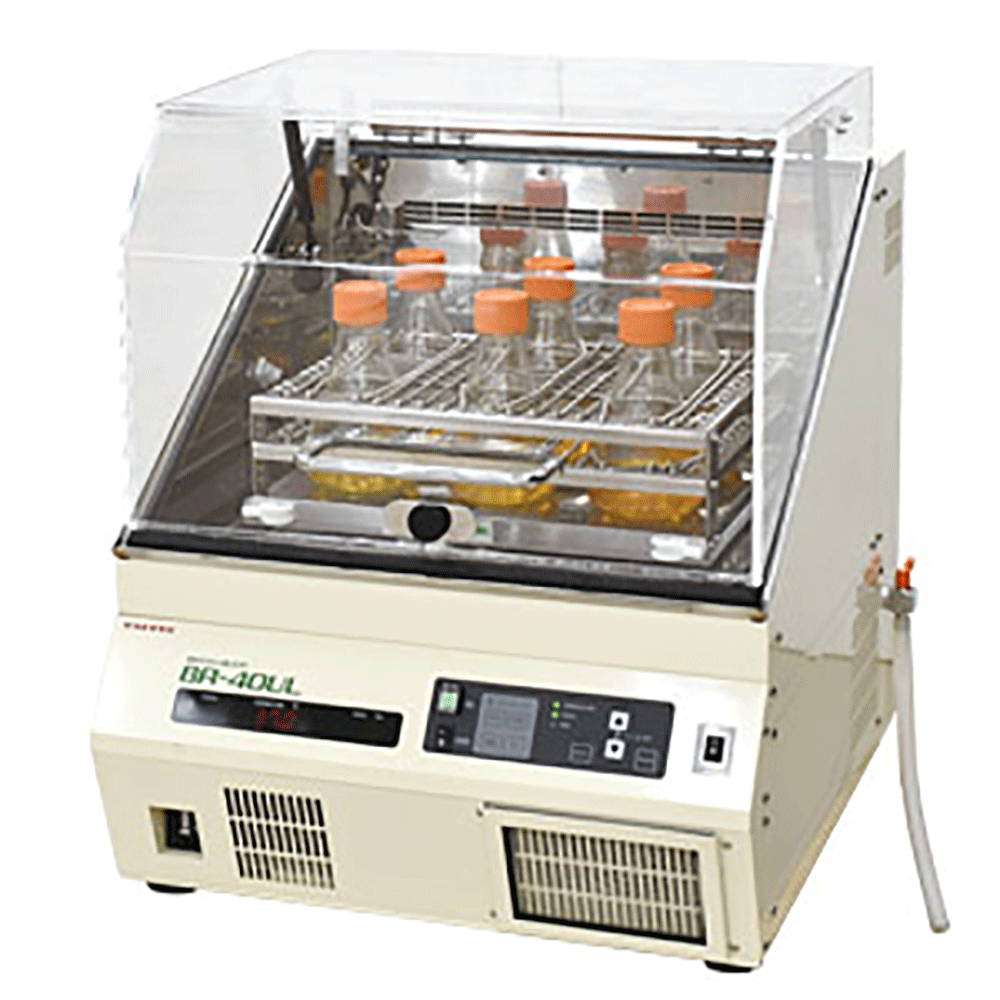

Constant temperature incubator shaker
Model: BR-40UL
Brand: TAITEC
Features:
BR-40UL depends on the type of platform sold separately, but up to 8 500mL Erlenmeyer flasks can be held. Switching between reciprocating and orbital is possible. The Erlenmeyer flask can be orbited, the test tube can be reciprocated, and the shaking method can be changed according to the vessel. It is also equipped with a refrigerator that can cool to +4°C. It can be stacked on top of other medium-sized BR series (BR-41-53) it contributes to space-saving.
Dial-type conventional models have been changed to digital setting/display for both temperature and shaking speed. Programmed operation is also possible. For example, after culturing at 37°C, the temperature can be shifted to 4°C and samples can be stored. In addition, the filter can be easily cleaned by moving it to the front of the main unit, which improves the user-friendliness of the product.
When the room temperature is sufficiently cool, BR-40UL can switch OFF the chiller to save energy (temperature can be controlled only by the heater). For example, if the room temperature is sufficiently low at +25°C and the operating temperature is +37°C, the chiller can be turned OFF to save as much energy as approximately 1/6. When turning OFF the cooling function, make sure that the set temperature is at least +6°C higher than the ambient temperature.
Specifications:
| Model | BR-40UL |
|---|---|
| Temperature range (*1) | +4ºC to +70ºC |
| Ambient temp. range (*1) | +5℃ to +30℃ |
| Temp. control accuracy (*2) | ±0.3 to 1.0℃ |
| Shaking motion | Reciprocal/Orbital |
| Speed range | 20 to 200 r/min |
| Shaking width | 10 to 40 mm（stepless variable type） |
| Door type | Swing lift-up door |
| Capacity | Universal shaking platform MT-4430: Erlenmeyer flask 500mL × 8, Universal shaking platform MT-4030: Erlenmeyer flask 2L × 2 |
| Heating method | Heater 500 W |
| Cooling method | Compressor 75 W, Cooling function can be switched on/off with the cooling switch. |
| Setting and display of temperature/speed | Digital setting, digital display |
| Platform size | 400 × 300 mm（max. inside height：331 mm） |
| Maximum load | approx. 7 kg (Platform and Vessel holder included) |
| Program functions | 1 program, 9 segments: Temp., Shaking speed and time/per segment (Setting range: 00 h 00 min to 99 h 59 min), Temp. gradient function |
| Safety devices/functions | Leakage/Overcurrent breaker, Fuse, High temp, Alarm of abnormal sample temp. (Set as desired),Detecting the door opening and closing, Self-diagnosis function for sensor error, Motor current limiter, Compressor overheating cut-off circuit |
| Other functions | Connecting hole inside chamber × 1 |
| Dimensions (W × D × H) | 586 × 636 × 689 Hmm |
| Weight | approx. 60 kg |
| Power supply | AC100V/9A |
| Standard accessories | Magnetic sheet × 2, Drain-reception plastic bottle with hose × 1 |
