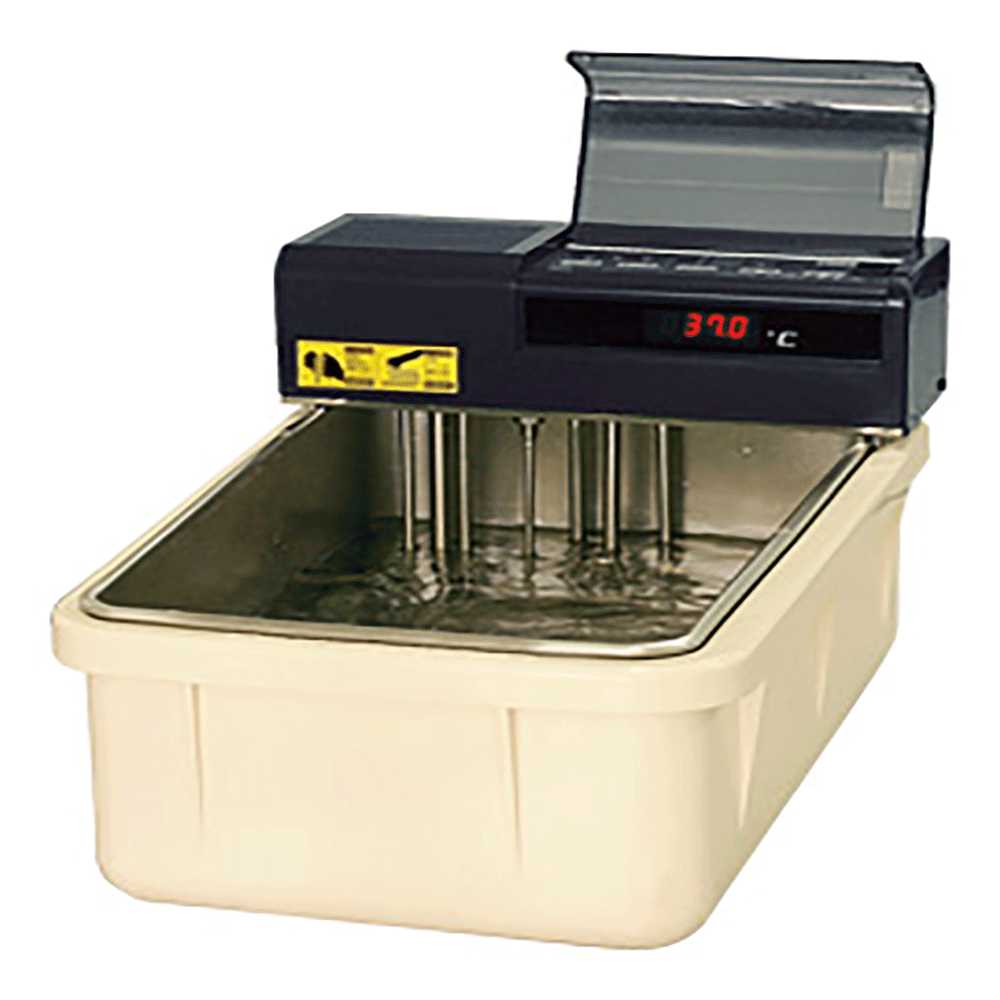

Unit water bath
Model: Thermominder SDN-B
Brand: TAITEC
Features:

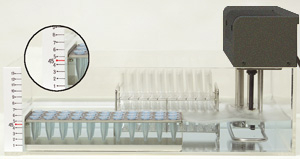

Addressed low water level (45mm) enables safety thermal insulation of container
Using at low temperature level is optimum for small container such as micro tube. There is no risk of turning over test tube which has low level of content since tube is not floating.
Temperature setting using Up-Down key.
Up-Down key can set temperature in unit of 0.1ºC. Setting temperature and actual temperature are digital display.
SDN-B can memorize three temperature settings.
SDN-B can memorize three temperature settings.
Becomes moist chamber using heat-proof plastic hood
With optional heat-proof plastic hood RF-SDM, take advantage of addressing low water level by speeding up temperature rise by 10 min and preventing evaporation. Furthermore it can be used as moist chamber which is useful for in situ hybridization.
Machine body and wetted surface material is stainless steel
This machine is durable and easy to maintain hygienically because machine body (except float switch) and wetted surface of attached thermal insulation tray B is made of stainless steel.
Two types of different temperature regulation accuracy and with or without timer
There are two models; standard model of SDN-B and EXN-B with higher accurate temperature regulation by one digit and has ON-OFF timer. They are specialized thermo minder for attached thermal insulation tray B and shaking water bath personal .
Specifications:
| Model | SDN-B |
|---|---|
| Temperature range (*1) | 5℃ above RT to +70℃ |
| Settable temp. range (*2) | -20℃ to +100℃ |
| Temp. control accuracy (*3) | ±0.1℃ to ±0.3℃ |
| Stirring method in Bath | Jet flow |
| Flow | Jet blast |
| Temperature display/Temperature memory | Display: Digital (Changeable Preset/Current value)Memory: 3 |
| Other functions | Buzzer notification when Preset temp. is reached |
| Automatic tuning | |
| Minimum Water level | 45 mm from the bottom of the bath |
| Heater | 800 W |
| Safe devices/protections | Circuit protector, Fuse, Dry-heating protection with float, Sensor error, Short circuit, High/Low temp. sample protection, Water level alarm, Non-volatile memory error, |
| Automatic tuning error, Alarm setting error | |
| Power failure | Switchable Automatic/Manual recovery |
| Dimensions inside Bath(W×D×H) | 230 × 350 × 140 mm |
| Main unit dimensions(W×D×H) | 280 × 109 × 215 mm (When Thermal insulation tray B-type is used: 280 × 475 × 240 mm) |
| Weight | Approx. 3 kg (6 kg: Thermal insulation tray B-type is included) |
| Power supply/consumption | AC100V/8.5A (Need a step-down transformer), 105 Wh at 37℃ |
| Standard accessories | Thermal insulation bath B-type × 1 pc (*5) |
