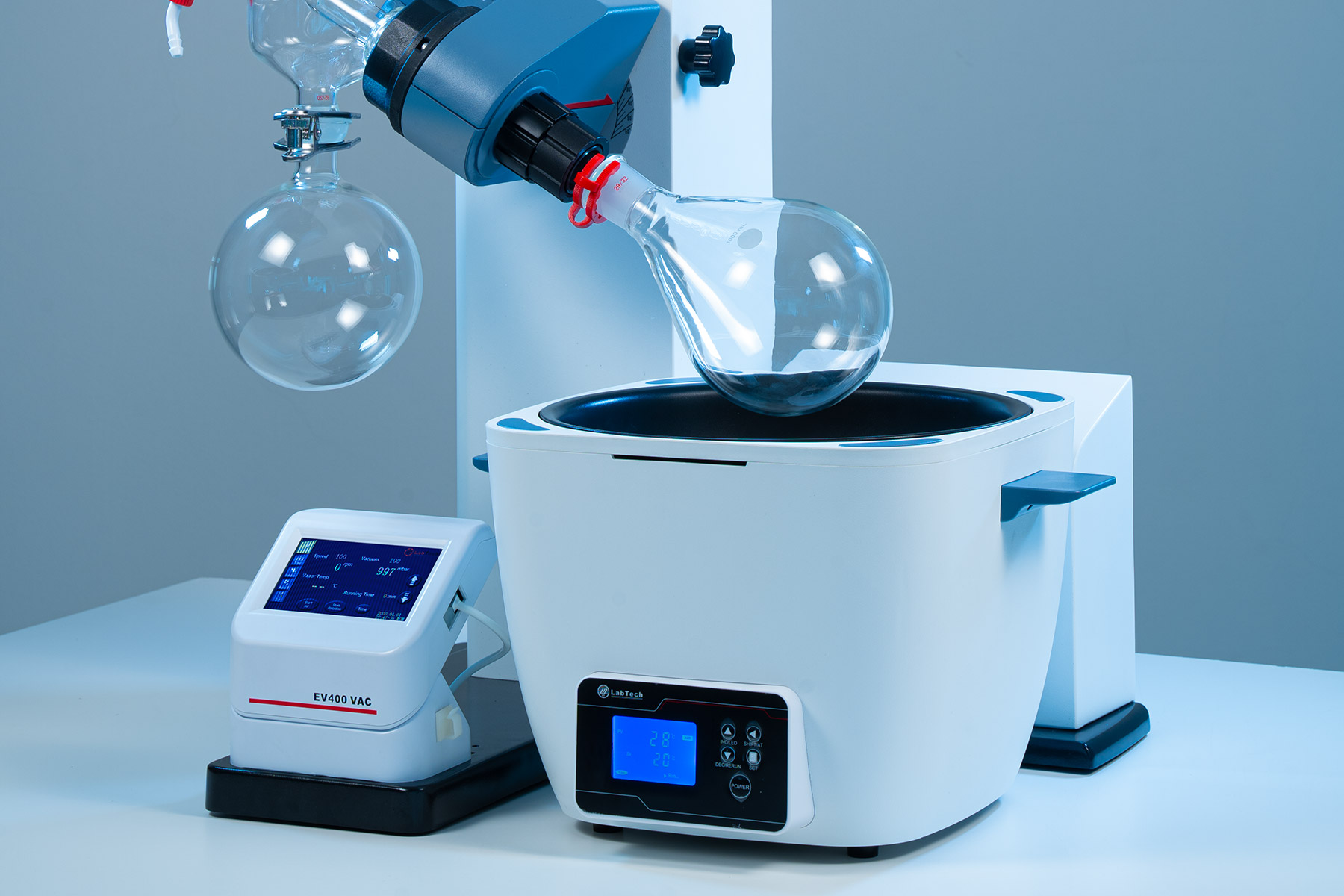

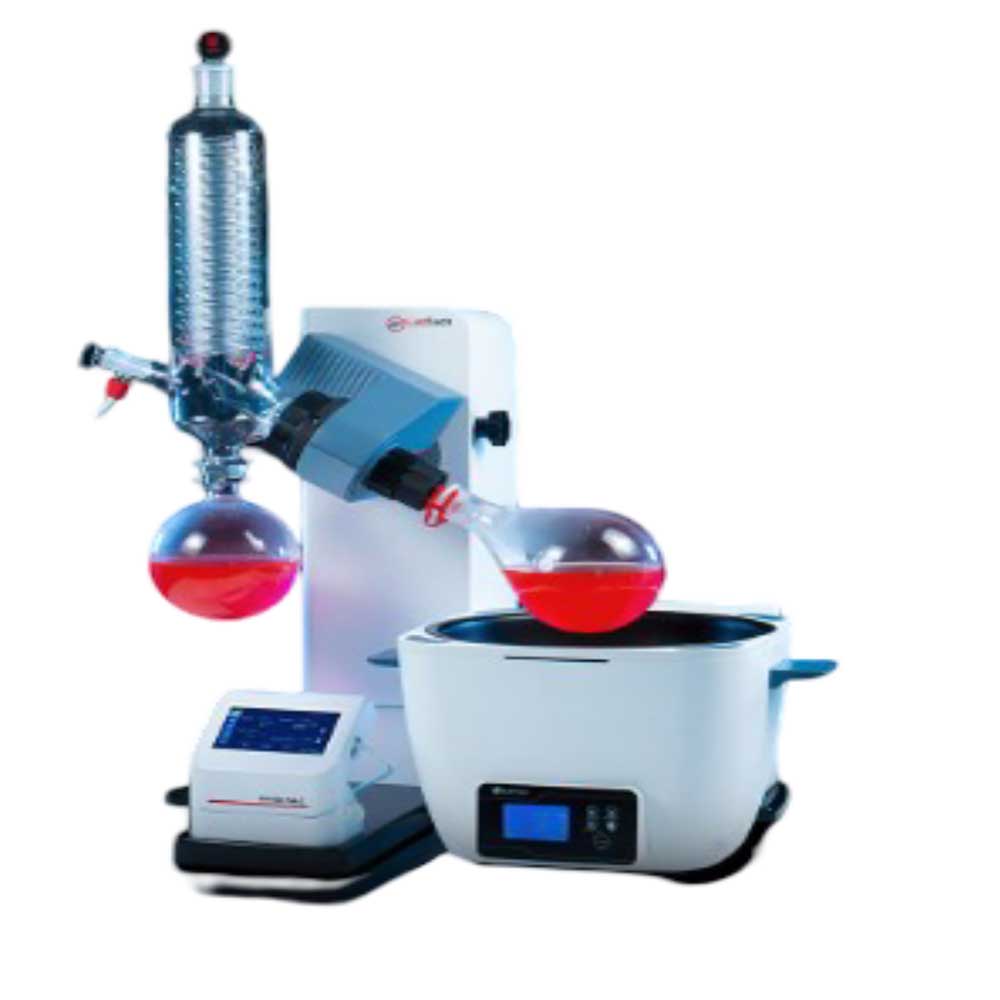

Rotary Evaporator

Specification

MAIN UNIT
Rotation speed range (rpm): 20-300
Display: Color Touch
Lift: Motor
Lift stroke (mm): 160
Condenser: Vertical or Diagonal
Cooling surface (cm2): 1200 Standard (1500 Optional)
Clockwise counter/rotation: Yes
Gradient distillation: Yes
Built-in vacuum controller: Yes
Solvents library: Yes
Vapor temperature : Optional
Auto distillation: Optional
Plastic-coated Glassware: Available

HEATING BATH
Temperature range (°C): Ambient-230
Temperature controller mode: P.I.D.
Bath material: SS with PTFE Coating
Temp. control accuracy (°C): ±1 (Water) ±2 (Oil)
Heating power (W): 1300
Bath capacity (L): 5

GENERAL
Dimensions (LxWxH): 60x44x90 cm
Gross weight (kg): 29
Power supply voltage: 230V 50/60Hz (115V 60Hz)Compatible Accessories:

a) Chiller: H50-500
Spec:

• control range: -5° to +35°C
• stability: ±0.3°C (P.I.D. / LCD)
• Refrigeration capacity: 500 W
• Pump capacity: 3.5 L/min@10psi
• Dimensions (LxWxH cm): 48x25x47

b) Vacuum Pump: VP18 PLU
Spec:

• Power (W): 140
• Pumping speed (L/min): 18
• Vacuum pressure (mbar/Kpa): 20/200
• Vacuum controller: Manual
• Noise (dB): ≤42
• Dimensions (LxWxH cm): 30x17x24
• Weight (kg): 7
• Power supply voltage 230V 50/60Hz

c) Vacuum Controller: LV6010

Spec:

• Large LCD display
• Vacuum control range: 2~999 mbar / 0,2-99,99 Kpa
• Vacuum control precision: ±1 mbar
• Step vacuum control (different vacuum pressure with different holding time)
• Built-in gas release valve ensures high effi cient and stable vacuum control
• Built-in anticorrosive vacuum sensor with high precision
• Fully anticorrosion design
• ON/OFF control of vacuum pump to extend the pump working life
• Alarm when the vacuum control fails to reach the desired value
• Dimensions (LxWxH cm): 20x20x12.5

d) Evaporating Flask : 1000 ml

• Joint Size: 29/32

e) Receiving Flask: 1000 ml

• Joint Size: 35/20
