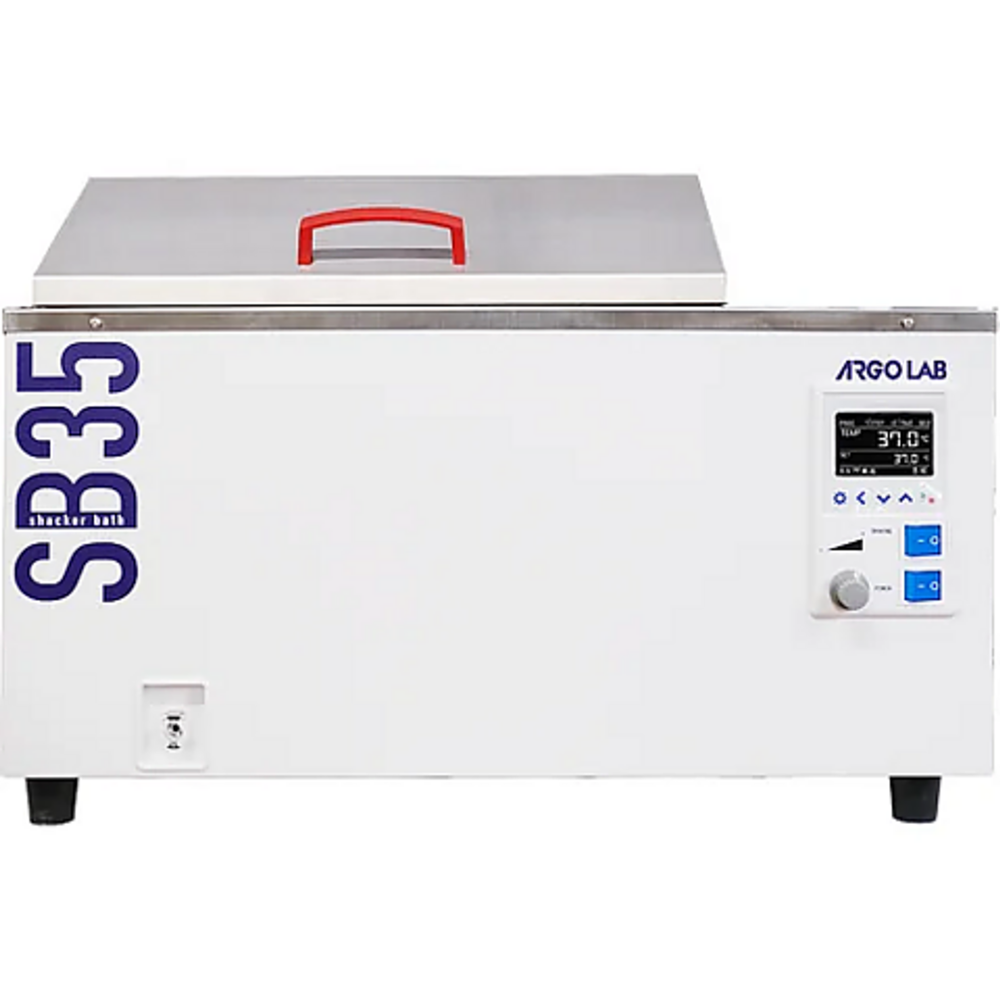

Waterbath with mechanical shaking Features
Model: SB 35
Brand: Giorgio Bormac srl
Origin: Italy
The SB 35 NEW Water bath with Mechanical Shaking is a high-performance laboratory shaking water bath designed for precise temperature control and uniform horizontal shaking. Featuring a 35-liter stainless steel tank, PID temperature control, and an adjustable shaking speed of 0–150 rpm, it is ideal for sample incubation, biochemical analysis, microbiology, pharmaceutical research, and quality control laboratories.
The instrument offers excellent temperature stability, a user-friendly LCD display, delayed heating start, and comprehensive safety features to ensure reliable and repeatable laboratory performance.
Features:
- Temperature range from RT +5°C to 100°C
- 35 L stainless steel tank
- Horizontal (Dubnoff) mechanical shaking
- Adjustable shaking speed from 0–150 rpm
- PID temperature control
- LCD display with backlight
- Digital timer (1 minute–99 hours 59 minutes)
- Continuous operation mode
- Delayed heating start function
- Safe temperature limit for sample protection
- Visual and audible alarms
- Electronic over-temperature protection
- Stainless steel universal spring basket
- Drain valve for easy liquid replacement
- Easy-to-remove basket for cleaning
- Natural convection heating
Applications:
- Microbiology Laboratories
- Biotechnology Research
- Molecular Biology
- Pharmaceutical Laboratories
- Food Testing Laboratories
- Clinical Laboratories
- Environmental Testing
- University Research Laboratories
- Quality Control Laboratories
- Biochemistry Laboratories
Technical Specifications:
| Specification | Details |
|---|---|
| Model | SB 35 NEW |
| Water Bath Capacity | 35 Liters |
| Temperature Range | RT +5°C to 100°C |
| Temperature Resolution | 0.1°C |
| Temperature Stability (37°C) | ±0.5°C |
| Temperature Homogeneity (37°C) | ±1.0°C |
| Shaking Type | Horizontal (Dubnoff) |
| Shaking Speed | 0–150 rpm |
| Shaking Amplitude | 30 mm |
| Timer | 1 min–99 h 59 min & Continuous |
| Display | Backlit LCD |
| Heating Method | Natural Convection |
| Basket Size | 330 × 200 × 140 mm |
| Tank Material | Stainless Steel |
| Over-temperature Protection | Electronic |
| Safety Class | Class 2 (DIN 12880) |
| Power Supply | 230 V, 50/60 Hz |
| Power Consumption | 1250 W |
| External Dimensions | 645 × 350 × 355 mm |
| Weight | 28 kg |
Benefits:
- Provides accurate and stable temperature control
- Ensures uniform sample mixing with horizontal shaking
- Suitable for long-term laboratory operation
- Protects valuable samples with safety temperature control
- Easy cleaning and maintenance
- Durable stainless steel construction
- User-friendly operation with LCD display
- Ideal for research, industrial, and educational laboratories
Why Choose SB 35 NEW Waterbath with Mechanical Shaking?
- High-precision PID temperature control
- Uniform horizontal shaking for consistent results
- Large 35 L stainless steel tank
- Reliable safety protection system
- User-friendly LCD interface
- Easy drainage and maintenance
- Suitable for continuous laboratory operation
- Excellent choice for research, pharmaceutical, and quality control laboratories
Frequently Asked Questions (FAQ):
1. What is the temperature range of the SB 35 NEW?
The water bath operates from RT +5°C to 100°C.
2. What is the tank capacity?
The stainless steel tank has a 35-liter capacity.
3. What is the shaking speed range?
The shaking speed is adjustable from 0 to 150 rpm.
4. What type of shaking does it use?
It uses horizontal (Dubnoff) mechanical shaking.
5. Does it include over-temperature protection?
Yes. It features electronic over-temperature protection and a safe temperature limit function.
6. Can it operate continuously?
Yes. The unit supports continuous operation as well as programmable timer operation.
7. Which laboratories commonly use this water bath?
It is widely used in microbiology, biotechnology, pharmaceutical, food testing, clinical, environmental, and university research laboratories.
