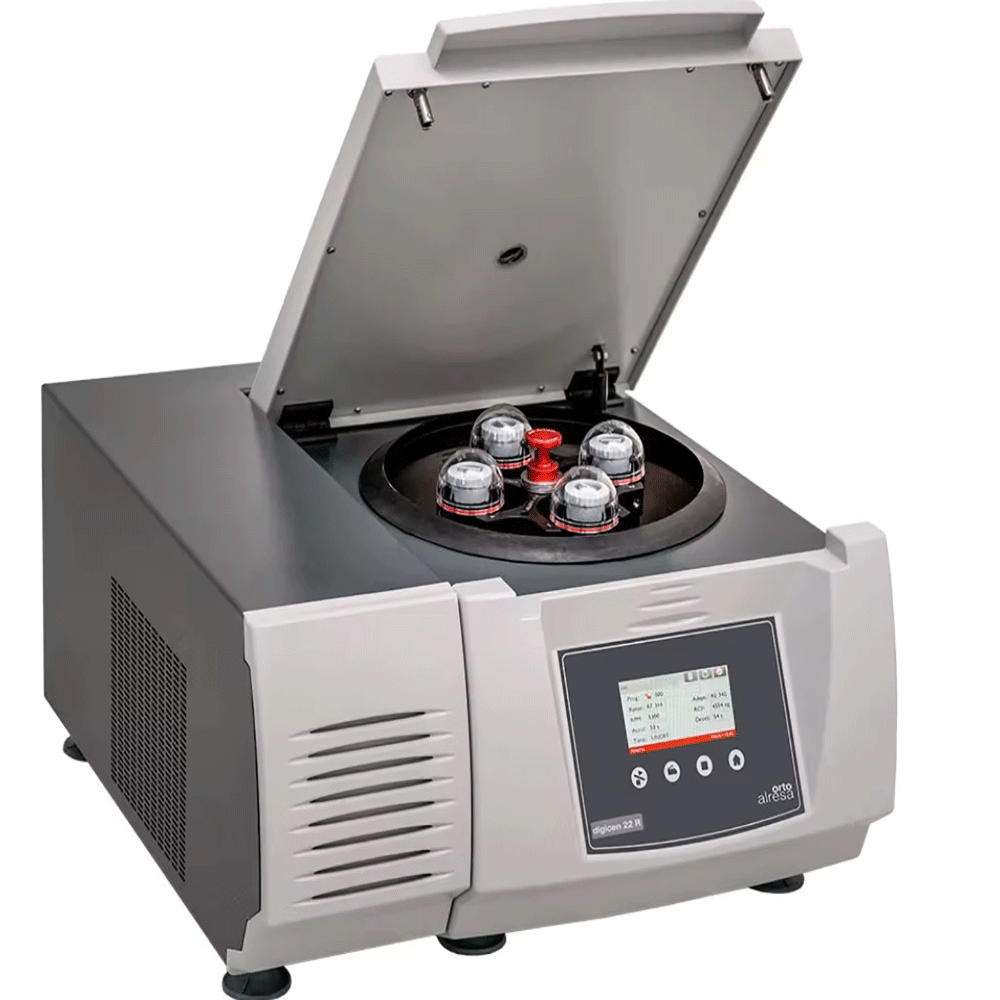

Refrigerated Centrifuges

Features:

TFT color touch screen:
• Shows RPM and RCF, time, temperature and acceleration/deceleration values (PCBS)
• Speed programming in 10 RPM/10 xg steps.
• Real RCF values on screen based on accessories configuration.
• Count up/down from “0” or at “set RPM/RCF” for reproducible tests.
• Timer from 1 sec. to 99 hours programmable in 1 sec. steps and hold position.
• PCBS: Progressive controlled acceleration and braking system up to 175
selectable ramps that prevents sample homogenization after separation.
• Start delay: To program the time at which the cycle is to begin.
• Linked program: Permits the linking of up to 8 consecutive programmes without the need of user intervention.
• 100 programmable memories, with protection under password.
• Several acoustic and visual messages showing the situation of the device to the user.
• Microprocessor controlled. Connectivity.
• Induction motor maintenance free (brushless).
• Rotors and adapters list in memory.
• Noise level: below 60 dB.
• Start, stop, open lid and short spin with adjustable speed buttons.
• Possibility to block or modify the speed during the cycle.
• Automatic lid opening, programmable.
• Last values remain in memory.
• Automatic rotor recognition. Over-speed protection.

• Lid provided with security systems:
– Automatic lid lock system, motorized with double lock.
– Emergency lid-lock release.
– Locking and protection against opening along the run.
– Lid dropping protection.
– Port in the lid for calibration and operation checking.

• Unbalance detection and switch off.
• Protection safety ring between the centrifugation chamber and the housing.
• Chamber of centrifugation in stainless steel (easy cleaning).
• Rotors can be removed with the lid closed. Hermetic lids.
• Rotors and adapters autoclavable, easy to install without tools (REI System)
• Automatic disconnection for energy saving up to 8 h.
• Maintains the refrigeration after the centrifugation process.
• Precooling program with rotor spinning and selectable temperature.
• Guarantees 4°C at maximum RPM.
• Temperature range from -20°C (-4°F) to 40°C (104°F) in 1°C steps.
• Temperature sensor inside the chamber.
• Gas R 449A HFO (CFC free).

Specifications:

Max capacity: 4 x 100 ml
Display type: TFT
Max speed: 16,500 RPM / 26,480 xg
Version: Refrigerated
