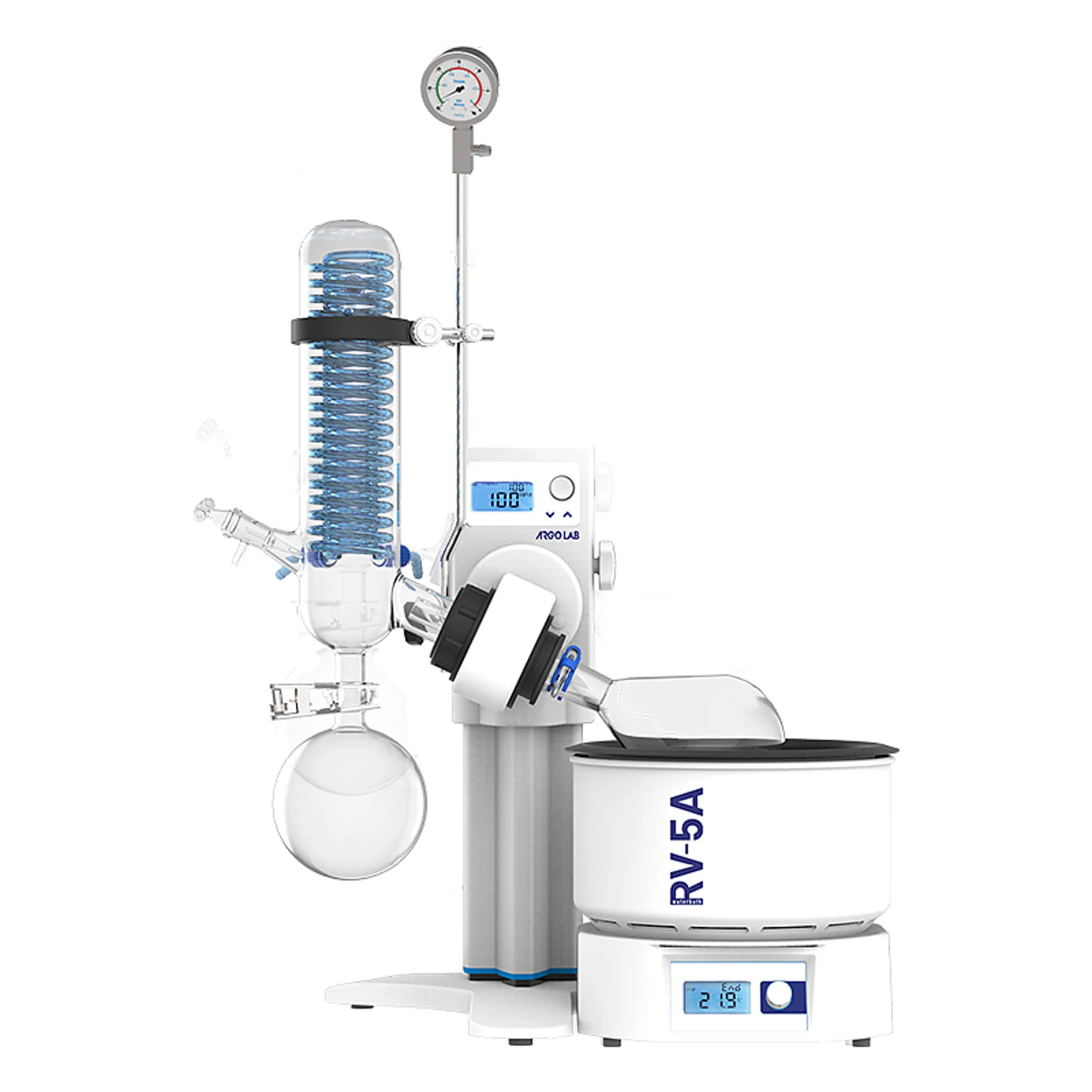

Rotary Evaporator
Model: RV-5A
P/N: 41203012
Brand: Giorgio Bormac Srl
Origin: Italy
Features:
- Motorized lift for smooth and precise positioning of the evaporation column.
- LCD display with control knob for fast access to key operating parameters.
- Over-temperature safety alarm.
- PTFE vacuum seals ensuring excellent chemical resistance and long-term vacuum stability.
- Vent valve for controlled introduction of air into the system.
- WATER BATH (Ambient +5 °C … 99 °C): ideal for delicate evaporations.
Technical Specification:
| Security class | 3.1 |
| Frequency | 50/60 |
| Warranty | 2 |
| Weight (with packaging, no rotor) | 30 |
| Absorbed power | 1000 |
| Temperature resolution | 0,1 |
| Timer | 99:59 or continuous mode |
| Type of motor | DC brushless |
| Useful volume | 5 |
| Power supply | 230 |
| Supplied as standard | Set of 2 x 1,5 m pipes with insulating material |
| Overtemperature security | Electronic and electromechanical |
| Working temperature | RT+5°C … 99 |
| Display | LCD |
| Regulations | 2014/30/EU, 2014/35/EU, 2011/65/EU, 2006/42/EC, EN 61010-1:2010+A1:2019, EN 61326-1:2021, EN 61010-1:2010+A1:2019, EN 61000-3-2:2019, EN 61000-3-3:2013, EN 60204-1:2018, EN ISO 12100:2010 |
| Packaging dimensions (W x D x H) | 670 x 620 x 620 mm |
| Rotation speed | 20-300 rpm |
| New | 1 |
| ONLINE | 1 |
| Evaporating Speed | 22 ml/min |
| Ultimate vacuum | 8 |
| Speed settings | LCD display with knob |
| Temperature settings | LCD display with knob |
| Lift | Automatic |
| Condenser | Coil, condensation areas: 0.15m² |
| Glassware supplied as standard | 1000ml evaporating flask (NS 29/32), 1000ml receiving flask (KS 35/20) |
| Gaskete | PTFE |
| Bath material | Stainless Steel and PTFE |
| Internal Bath Dimensions | Φ 230 x 130 mm |
| External dimensions (with glassware) WxDxH | 470 x 400 x 710-810 |
| Lift Stroke | 100 mm |
Supplied as Standard:
The new RV-5A rotary evaporator is supplied as standard with a complete accessory kit, including: – 2 connection tubes – a 1000 ml evaporation flask (NS 29/32 ground joint) – a 1000 ml receiving flask (KS 35 spherical joint) This configuration is suitable for most laboratory applications. The complete kit includes, in addition to the RV-5A and the accessories listed above: – C-20 chiller – VP-20 vacuum pump – VC-50 vacuum controller. The kit is available in two versions: – with water bath – with oil bath
