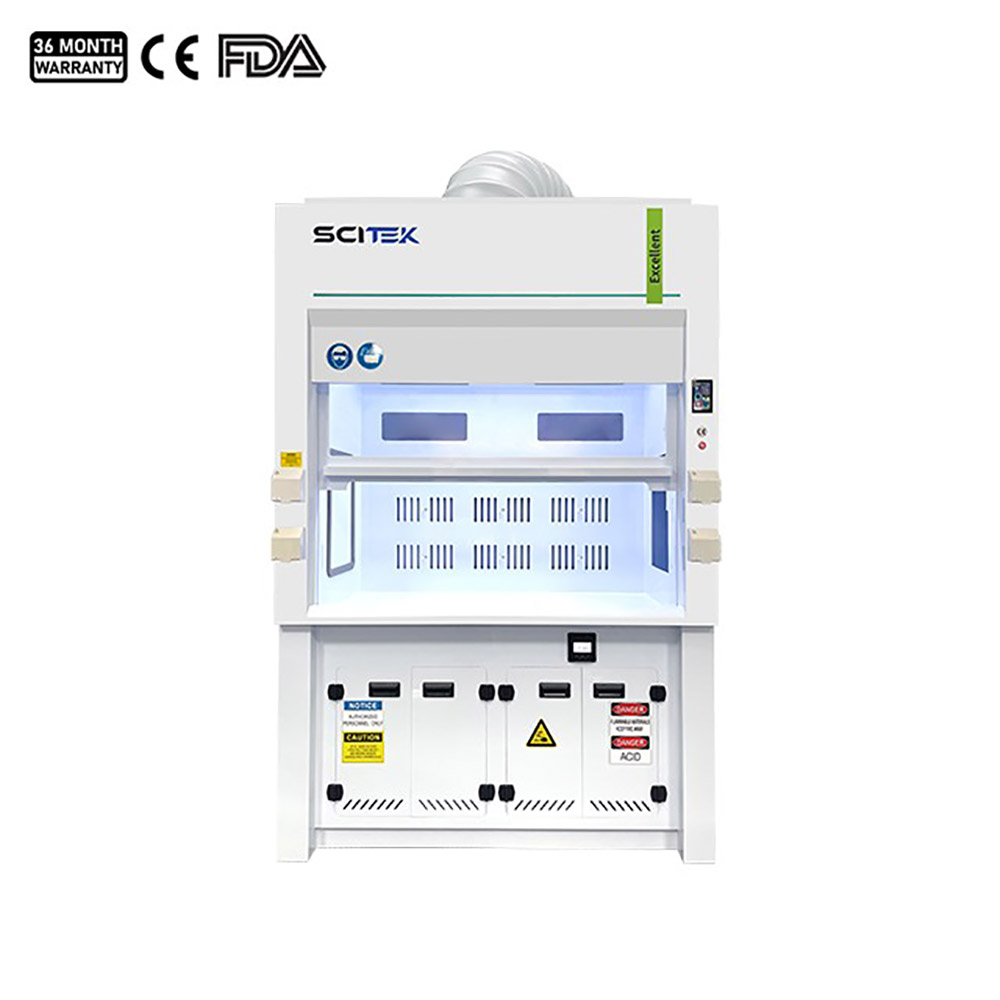

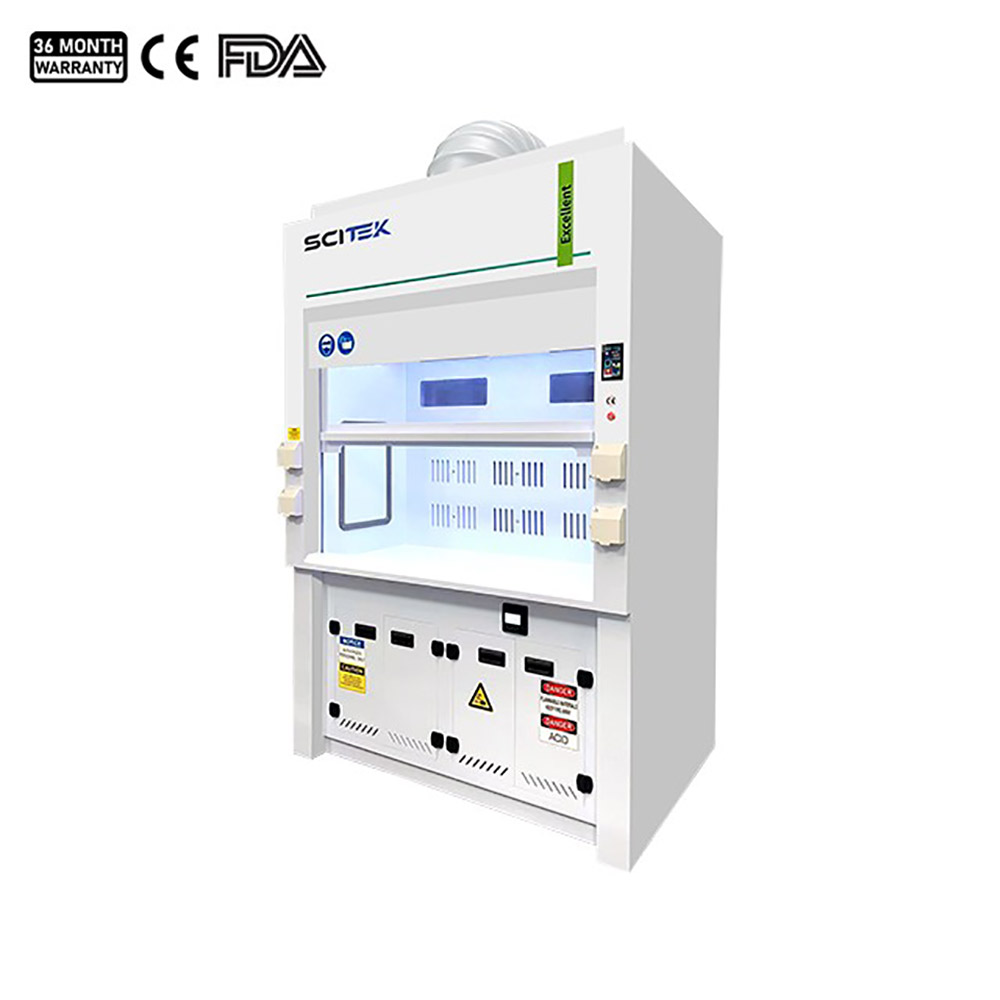

PP Spray Fume Hood with Scrubber
Series: FMH (S)
Model: FMH-900DP(S); FMH-1200DP(S); FMH-1500DP(S); FMH-1800DP(S)
Brand: Scitek
Origin: USA
PP Spray Fume Hood Features:
- Structure DesignThe mainframe is made of PP (polypropylene) material, resistant to strong acid, alkali and strong corrosion.
Double Channel Spray (with double scrubber), more cleaner, processing rate up to 90%.
The main cabinet and the base cabinet are easy to disassemble and move.
- Safety ProtectionAutomatic dosing system.
Built-in flushing system.
Excellent pollution control performance.
Base cabinet with bypass Grille, Sash air foil and bypass system achieve function of Air supplement.
The flushing system behind the deflator washes away all perchlorate precipitates on the deflator, preventing any explosive salt buildup.
Built-in water pump, ensures that the water pressure in the flushing system is constant.
- Easy MaintenanceThe work surface is easy to clean.
The interior of the cabinet is easy to disassemble, easy to maintain and clean.
With maintenance access port, convenient engineer maintenance.
PP Spray Fume Hood Specifications:
| Model | FMH-900DP(S) | FMH-1200DP(S) | FMH-1500DP(S) | FMH-1800DP(S) | |
|---|---|---|---|---|---|
| External Size (W×D×H)(mm) | 900×1050×2275 | 1200×1050×2275 | 1500×1050×2275 | 1800×1050×2275 | |
| Internal Size (WxDxH)(mm) | 770×500×900 | 1070×500×900 | 1270×500×900 | 1570×500×900 | |
| Max Opening | 750mm | ||||
| Work Surface Height | 800mm | ||||
| Spray System | Double Channel Spray (with double scrubber) | ||||
| PH Value | PH Value Display, support 485 communication protocol | ||||
| Control System | Display | 4.3″ LCD touch screen | |||
| Alarm | With Leakage alarm system | ||||
| Airflow System | Airflow Velocity | 0.3-0.5m/s, speed adjustable | |||
| Air Volume | 1000m³/h | 1200m³/h | 1600m³/h | 1800m³/h | |
| Exhaust Outer diameter | Φ160mm | Φ250mm | Φ250mm | Φ300mm | |
| Cabinet Construction | Main Body | PP (polypropylene) material | |||
| Work Surface | PP (polypropylene) material | ||||
| Front Window | Manual door, PVC material | ||||
| Electrical System | LED Lamp | 2×30W | |||
| Max.Consumption | 200W (Not include socket loading power consumption) | ||||
| Power Supply | AC 220V±10%, 50/60Hz, 110V±10%, 60Hz | ||||
| Illumination | 800Lux | ||||
| Sound Emission | ≤60dB(A) | ||||
| Standard Accessory | Air Velocity Sensor, Gas & Water Tap and Valve, Waterproof Socket×4, Electric Air Valve, LED Lamp×2, Water Pump, Double Washing System, Automatic Dosing System | ||||
| Optional Accessory | Epoxy Resin Work Surface, 0.3KW Centrifugal Blower, VAV variable air volume system | ||||
| Net Weight(kg) | 160 | 250 | 300 | 380 | |
| Gross Weight (kg) | Main Body | 150 | 220 | 270 | 300 |
| Base Cabinet | 90 | 120 | 150 | 180 | |
| Shipping Size (W×D×H)(mm) | Main Body | 1050×1270×1780 | 1350×1270×1780 | 1650×1270×1780 | 1950×1270×1780 |
| Base Cabinet | 1050×1220×1020 | 1350×1220×1020 | 1650×1220×1020 | 1950×1220×1020 | |
| Shipping Volume (m³) | 3.7 | 4.8 | 5.8 | 6.9 | |
*Assemble in China.*
