Features

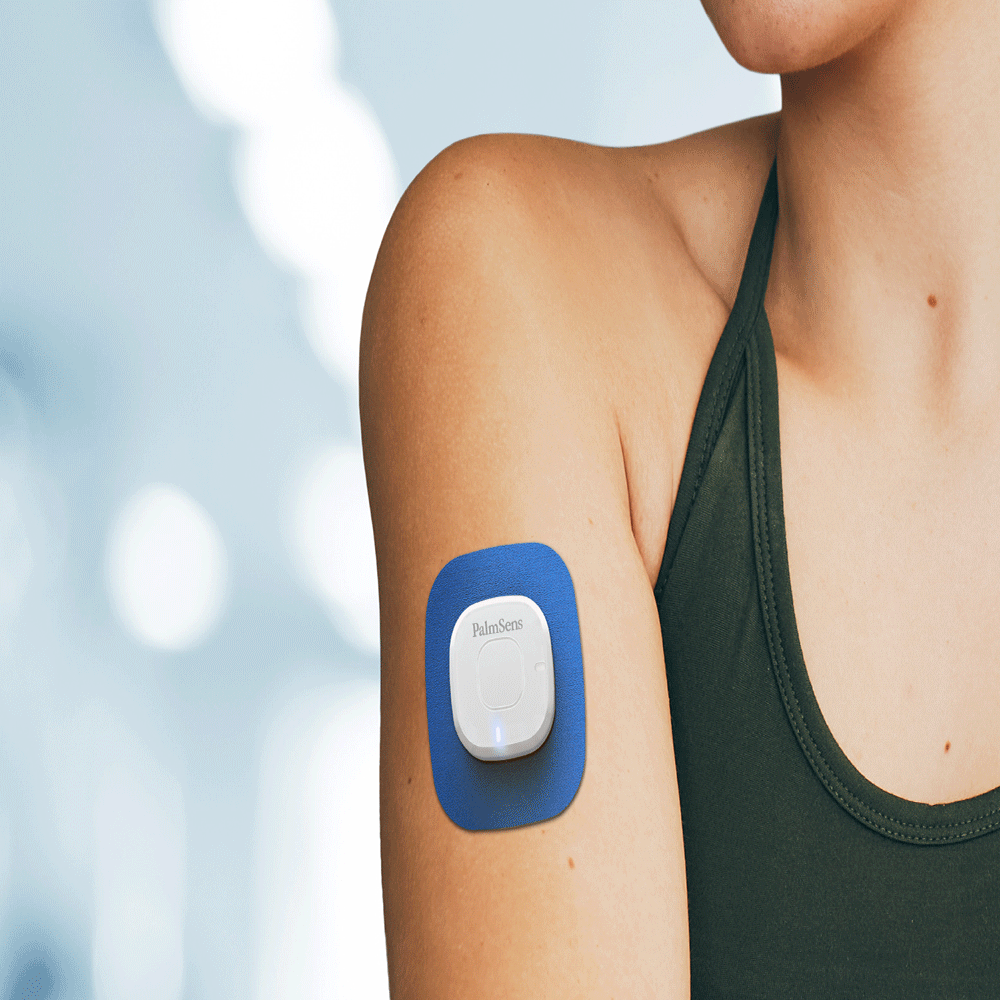

- Accelerate the development of your wearable sensor
- Works wireless and autonomous, battery powered
- Measure up to two different analytes using two working electrodes
- Use with PSTrace software for Windows
- Smooth start with the development kit
Specifications
| General | |
|---|---|
| Full
dc-potential range |
-1.7 to +2 V |
| Dynamic
dc-potential range |
2.2 V |
|
Compliance voltage |
-2.0 to +2.3 V [2] |
| Maximum current | ± 3 mA |
|
Max. data acquisition rate (datapoints/s) |
1000 |
| Supports FRA/EIS | Yes |
| [1] The dynamic range is the range that can be covered during a single scan within the full potential range. For example; a linear scan can start at -1.5 V and end at 1.1 V or vice versa, covering 2.6 V dynamic range. [2] The compliance voltage is the maximum potential between Working and Counter electrode and depends on the selected mode.
|
|
Potentiostat (controlled potential mode)
| Channels | 1 channel (2x WE, 1x RE, 1x CE) |
|---|---|
|
Applied dc-potential resolution |
537 µV |
|
Applied potential accuracy |
< 0.2% |
|
Current ranges |
100 nA to 5 mA (10 or 12 ranges, depending on the mode) |
| Current resolution | 0.006% of selected current range (5.5 pA on 100 nA range) |
|
Current accuracy |
< 0.5 % of current ±0.1% of range |
| Measured potential resolution (for OCP) | 56 uV (for OCP) |
FRA / EIS (impedance measurements)
| Frequency range | 0.016 Hz to 200 kHz |
|---|---|
| Ac-amplitude range | 1 mV to 0.25 V rms, or 0.708 V p-p |
Electrometer
| Electrometer | |
|---|---|
|
Electrometer amplifier input |
> 1 TΩ // 10 pF |
|
Bandwidth |
250 kHz |
Other
| Power | USB-C and Battery |
|---|---|
| Communication | USB-C and Wireless communication BLE 5.0 |
| Storage | 14 MB for storing >450k datapoints |
| Size | 35 x 35 x 12 mm (including the mounting bracket) |
| Weight | 10 g |
| Battery | Rechargeable 50 mAh / 0.2 Wh.
Battery life 2 hours up to weeks, depending on the MethodSCRIPT. See power consumption below. |
| Auxiliary port | 1 Auxiliary pin, used by default for internal NTC temperature measurement. |
| Sensor connector | Via 6 spring-pin mounting bracket, or connect a regular SPE using the sensor break-out board |
| Operation temperature range | 0 °C to +40 °C |
Power consumption
| off | 0.1 mW | 75 days |
| idle or measuring | 92 mW | 2 hours |
| sleep with Bluetooth connected | 1 mW | 7.5 days |
| sleep without Bluetooth connected | 0.3 mW | 25 days |
| sleep with 10 mW bias potential applied on WE1 | 4.44 mW | 40 hours |
EIS Accuracy Contour Plot
