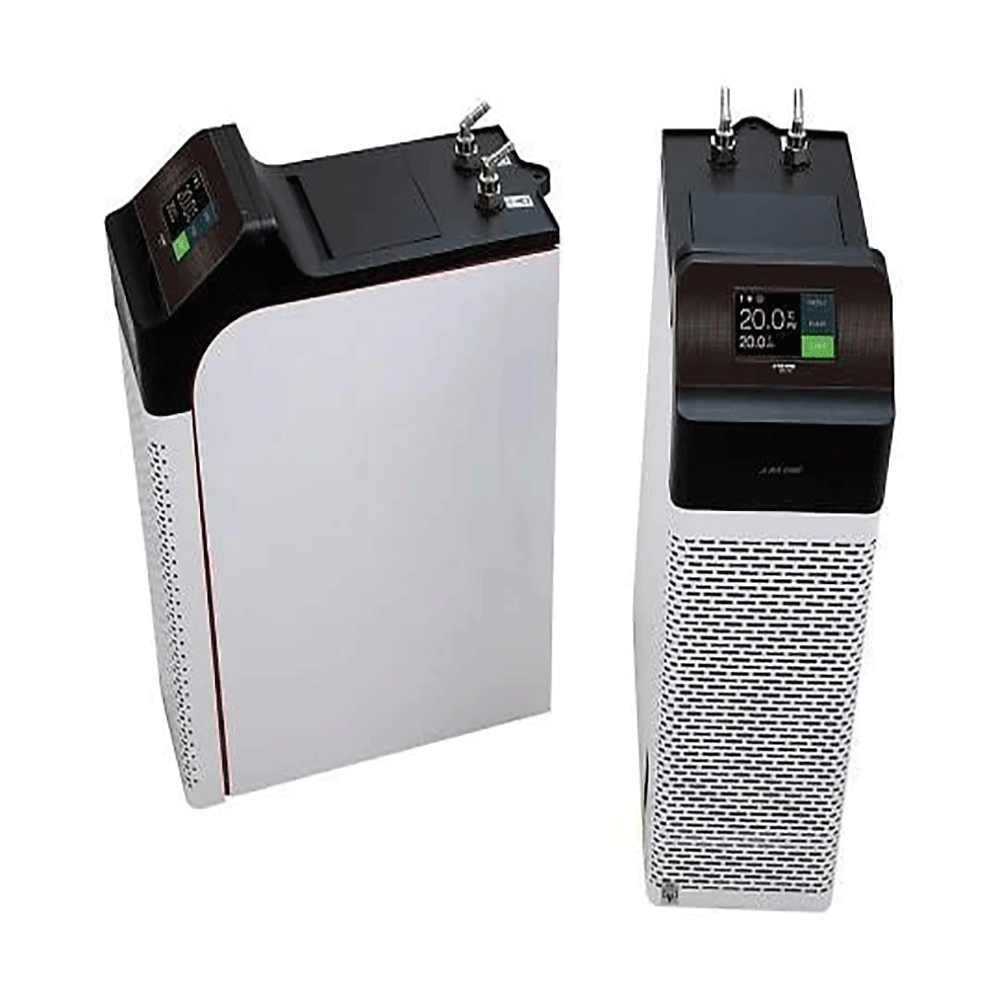

Laboratory Water Chiller | Cooling water circulation device
৳ 435,000.00
Model: SOC-700
Brand: As One Corporation
Origin: Japan
Description
Features:
- A new chiller that excels in design, functionality, operability, and price.
- It is equipped with a touch screen that is easy to see and operate.
- It is equipped with various alarm functions.
- Equipped with hot gas bypass control, temperature control accuracy has been improved.
- It is equipped with a drain to make it easy to drain condensation water.
- The filter mounting plate on the front is fixed with a magnet and can be easily removed.
- The control panel is angled at 45 degrees, making the display easy to see and operate whether the unit is placed on the floor or on a table.
- Cooling device suitable for rotary evaporators
- It is suitable for a variety of cooling applications, including research equipment, industrial machinery, and measuring instruments, such as rotary evaporators. We recommend combining it with AS ONE’s new rotary evaporator.
- Full functionality with an emphasis on ease of use
- Point 1: Utility design that can be placed anywhere
- The design is adaptable to a variety of environments.
- The control panel is angled at 45 degrees, making the display easy to see and operate whether placed on the floor or on a table.
- Point 2: Condensation drain
- A drain for draining condensation is installed at the top of the back of the product.
- It uses a stone-like structure that allows condensation water to naturally collect in the drain.
- Condensed water can be drained by connecting a drain hose.
- Point 3: LCD touch screen
- It features a highly visible UI design that simultaneously displays the measured temperature and set temperature.
- Operation is simple and intuitive, with just a touch taking you to the settings screen.
- Point 4: Hot gas bypass control
- Hot gas bypass control is used for temperature control, improving temperature control accuracy compared to previous models.
Specifications:
- Circulation method: Closed system circulation
- Type of liquid used: Tap water, ethylene glycol, etc. (pure water is not permitted)
- Cooling capacity (at liquid temperature): 10℃/approx. 460W, -10℃/approx. 110W
- External circulation capacity: Maximum flow rate/approx. 10L/min, maximum lift/approx. 18m
- External circulation nozzle: Metal nozzle, outer diameter 10 mm (compatible tube inner diameter φ8 to 9 mm)
- Refrigerator/refrigerant: Air-cooled, rated output 275W, R-134a
- Heat exchanger: SUS316L/SUS304 brazed plate heat exchanger
- Safety features: Short circuit/overcurrent breaker, refrigerator protection delay timer, water level sensor, refrigerator overload relay protection function, temperature upper/lower limit alarm
- External input/output: –
- Water tank material: SUS304
- Dimensions: 236 x 150 x 143 mm
- Capacity: Approx. 5.0L (liquid volume: Approx. 4.2L)
- External dimensions: 212 x 482 x 637 mm
- Power supply: AC100V 50/60Hz
- Weight: about 30kg
- accessories:-
- Temperature setting range (℃): -15 to +30 (without heater) *1
- Temperature control accuracy: ±1.0℃*2
- Temperature setting and display: Touch screen input, digital display, minimum digit 0.1℃
- Refrigerator, refrigerant, and amount of refrigerant: Air-cooled, rated output 275W, R-134a, 300g
- Ambient temperature range: 5 to 30°C
- *1 Depending on the ambient temperature, environment, and connection conditions, the temperature may not reach -15°C.
- *2 Capacity values at room temperature of 20°C, maximum circulation volume, power supply of AC100V 60Hz, and no load.
Package size: 212 x 458 x 602 mm 30 kg
Product Link: https://www.axel-gl.com/en/asone/d/4-2732-01/?q=4-2732-01
Additional information
| Weight | 30 kg |
|---|---|
| Dimensions | 212 × 454 × 602 mm |
