Biological Safety Cabinet Class I
Model: BSC-I-800
Brand: Scitek Global
Origin: USA

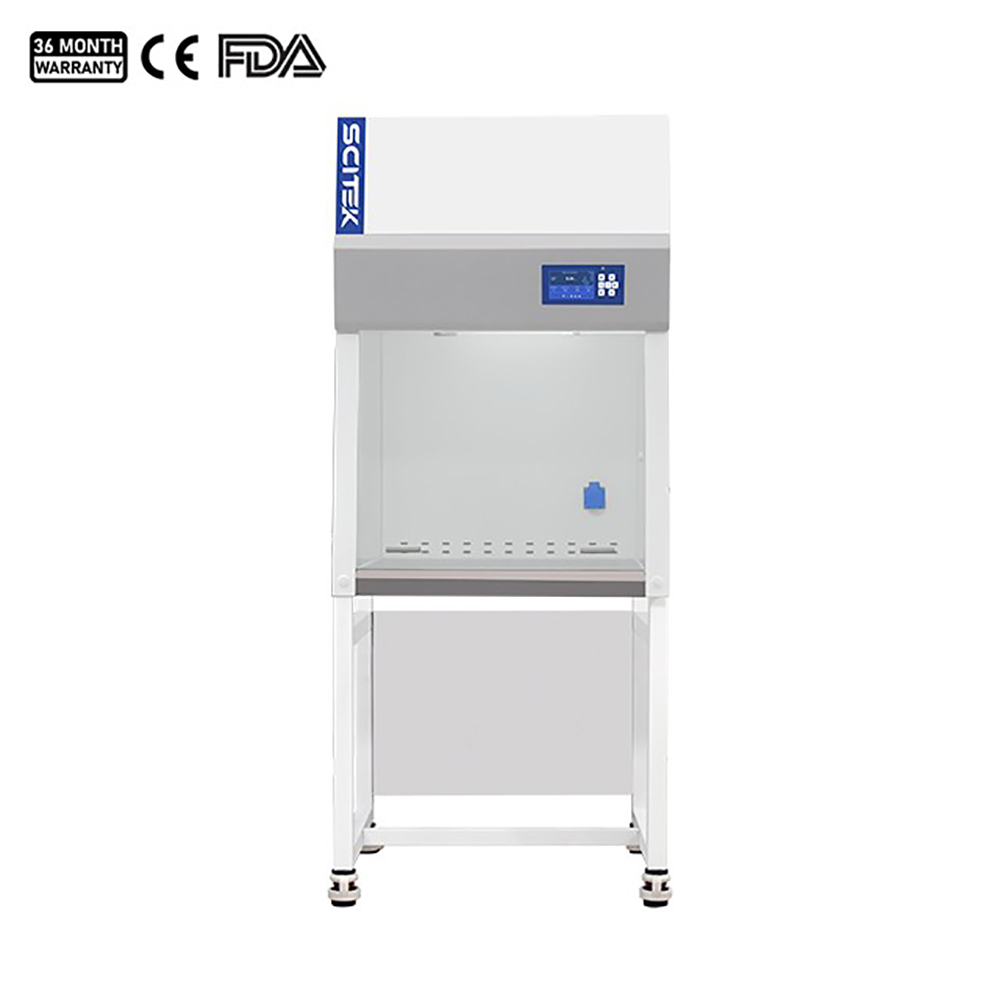

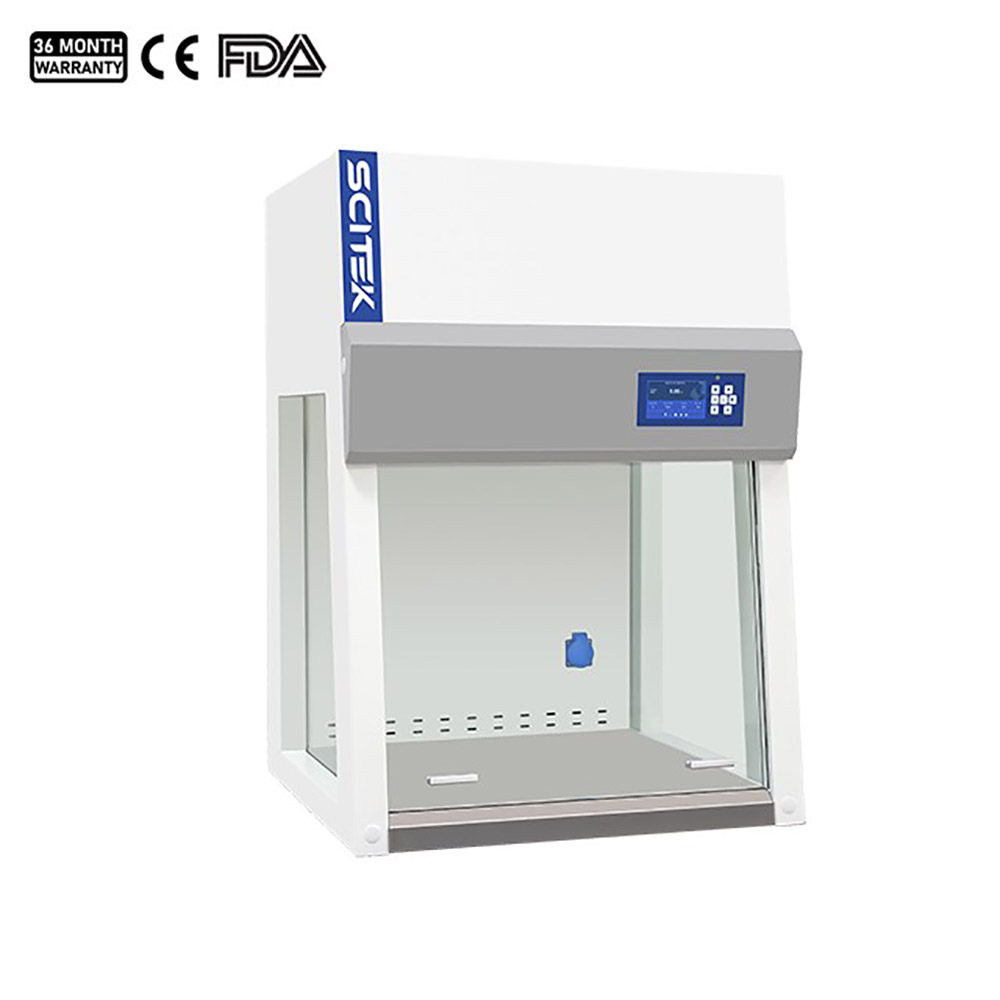

The SCITEK Global BSC-I-800 Biological Safety Cabinet Class I is a biological safety isolation cabinet designed for laboratory applications involving low-risk biological materials. It is designed to help protect the operator and the environment during laboratory work.
The BSC-I-800 features a HEPA filtration system with greater than 99.995% efficiency at 0.3 μm particle size, adjustable airflow velocity of 0.2–0.5 m/s, and a microprocessor controller with LCD display for monitoring operating status.
The cabinet includes a UV sterilization lamp, UV and HEPA filter life indicators, temperature sensor, waterproof electrical socket and a front sliding sash interlocked with the fan and UV lamp. Its 304 stainless-steel work surface and UV-resistant tempered glass provide a durable and practical working environment for laboratory applications.
Key Features:
- Class I biological safety cabinet
- HEPA filtration system
- HEPA efficiency >99.995% at 0.3 μm
- Adjustable airflow velocity of 0.2–0.5 m/s
- Microprocessor controller with LCD display
- UV lamp for sterilization
- UV and HEPA filter life indicators
- Temperature sensor
- Waterproof electrical socket
- Front sliding sash interlocked with fan and UV lamp
- UV-resistant tempered glass
- 304 stainless-steel work surface
- Large working area
- LED illumination
- Low-noise operation
Applications:
The Class I Biological Safety Cabinet BSC-I-800 can be used in:
- Biological laboratories
- Microbiology laboratories
- Research laboratories
- Laboratory sample handling
- Low-risk biological material handling
- Biological safety applications
- Educational and research institutions
- Pharmaceutical and biotechnology laboratories
- Environmental and analytical laboratories
- General laboratory applications requiring operator and environmental protection
Class I Biological Safety Cabinet Specifications:
| Model | BSC-I-800 | |
|---|---|---|
| External Size (W×D×H) | 710×680×1050 mm (Without Base Stand) 710×680×1680 mm (With Base Stand) |
|
| Internal Size (W×D×H) | 610×590×625 mm | |
| Work Surface Height | 750 mm | |
| Control System | Display | Microprocessor controller with LCD display, display the operating status of each function |
| Interlock | Front sliding sash interlock with fan and UV lamp | |
| Life Indicator | HEPA filter and UV life indicators facilitate a timely replacement plan | |
| Airflow System | Airflow Velocity | 0.2–0.5 m/s, Speed adjustable |
| Air filtration System | HEPA Filter | 1 pcs, Efficiency: > 99.995% at particle size of 0.3 μm |
| Cleanliness Grade | Class 100 (ISO14644.1 Class 5) | |
| Partial air circulation | Perforations at the back wall of the work zone which are designed to eliminate air turbulence and the possibility of dead air corners in the work zone. | |
| Cabinet Construction | Main Body | Electro-Galvanized steel with antimicrobial powder coating |
| Work Surface | 304 Stainless steel, an angled front, rounded work surface front edge | |
| Front Window | Manual sliding sash: 5 mm UV resistant tempered glass with counter-balance system and ergonomic handle | |
| Side window | 5 mm UV resistant tempered glass | |
| Electrical System | UV Lamp | 8 W×1 |
| With timing function from 0 to 999 min Interlock with front sliding sash. Emission of 253.7 nanometers for best sterilization effect. |
||
| LED Lamp | 8W×1 | |
| Consumption | 160W (Not include socket loading power consumption) | |
| Power Supply | AC 220±10% V, 50/60 Hz; 110±10% V, 60 Hz | |
| Illumination | ≥500 Lux | |
| Sound Emission | ≤62 dB(A) | |
| Standard Accessory | 1. LED Lamp; 2. UV Lamp; 3. Waterproof Socket×1pcs; 4. Air Velocity Sensor | |
| Optional Accessory | 1. Base stand; 2. Water Tap; 3. Gas Tap | |
| Net Weight | 80 kg (Without base stand), 130 kg (With base stand) | |
| Gross Weight | 115 kg (Without base stand), 165 kg (With base stand) | |
| Shipping Size (W×D×H) | 920×855×1190 mm | |
| Shipping Volume | 0.94 m³ | |
Benefits:
- Enhanced Safety: Protects users and the environment during biological work.
- Efficient Filtration: HEPA filter provides high-efficiency particle filtration.
- Adjustable Airflow: Allows flexible airflow control for different applications.
- UV Sterilization: Supports effective work-area sterilization.
- Easy Monitoring: LCD display provides convenient system monitoring.
- Durable Design: 304 stainless-steel work surface ensures long-term laboratory use.
FAQ for Biological Safety Cabinet Class I:
1. What is the BSC-I-800?
It is a Class I Biological Safety Cabinet designed for laboratory biological applications.
2. What type of filter does it use?
It uses a high-efficiency HEPA filter with >99.995% efficiency at 0.3 μm.
3. Does it have a UV lamp?
Yes, it includes an 8 W UV lamp for sterilization.
4. What is the airflow range?
The airflow velocity is adjustable from 0.2–0.5 m/s.
5. What is the work surface made of?
The work surface is made of durable 304 stainless steel.
6. Where can I buy it in Bangladesh?
The BSC-I-800 is available through Syntax Corporation, Bangladesh.
*Assemble in China.*
