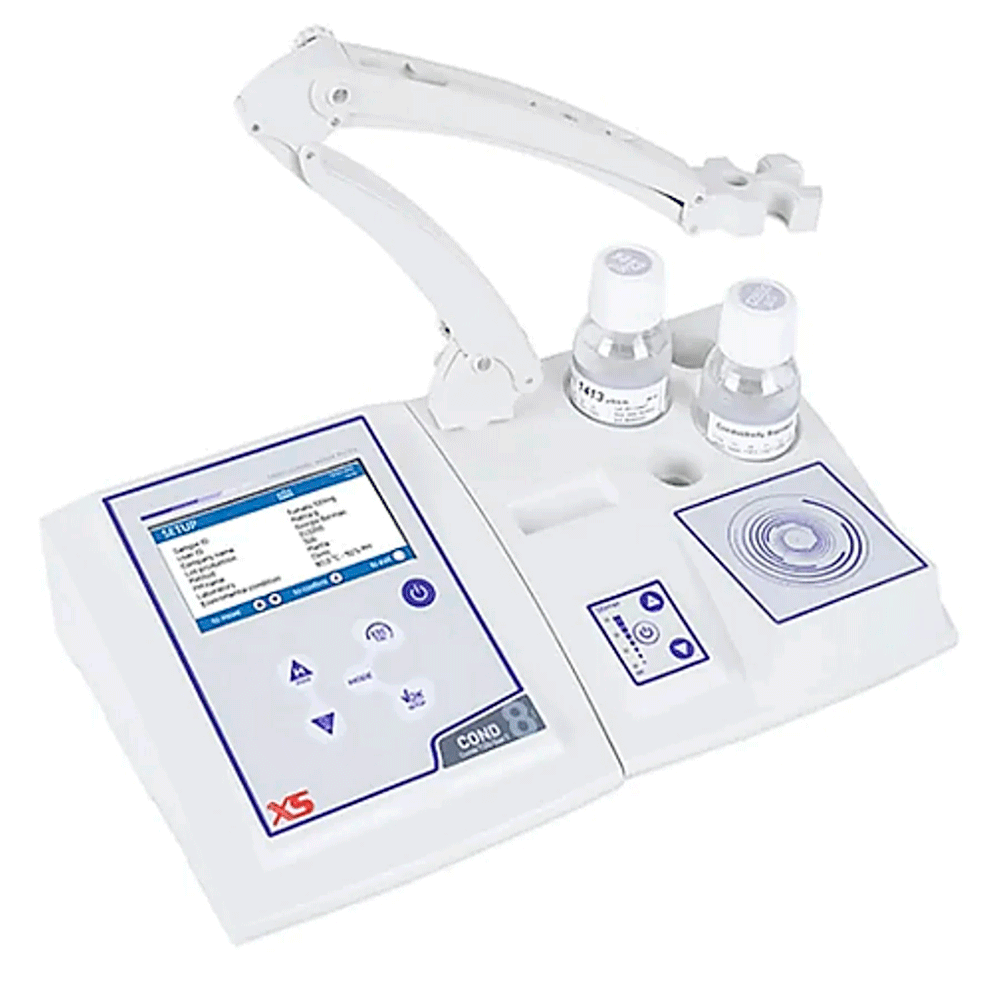

Bench conductivity meter, Stirrer – Without cell
Model: XS Cond 8 PRO Stirrer
Brand: GIORGIO BORMAC
Features
0,01 μS resolution
Backlit color graphic display
Manual or automatic temperature compensation
Manual and automatic data logger, up to 1000 data in GLP
Numeric password
Other features
Digital benchtop conductivity meter.
Automatic calibration of up to 4 conductivity standards (84 μS, 1413 μS, 12.88 mS, 111.8 mS) from 1 to 4 points with calculation of different cell constants or 1 point of user’s choice.
Recall and printing of calibration data.
Automatic scale change, automatic and manual temperature compensation (0…100,0 °C).
Reference temperature (15…30 °C).
Linear temperature coefficient (0,00…10,00%).
2-Ring cell technology with choice and indication of constant (0,1 – 1,0 – 10).
Calibration expiration and/or measurement lockout warning.
Alarm setting and display functions in analog format, “Stop reading”, stability indication, self-diagnosis messages.
Numeric password for protection of saved data and calibration management.
Data logger up to 1000 data in GLP with possibility of printing to PC data download.
Multilingual Setup menu (Ita – Eng – Deu – Fra – Esp – Por).
Free Data-Link+ software at www.giorgiobormac.com for data management to PC, including Audit Trail.
USB output for external keyboard and PC connection.
RS232 port for printer connection.
Independently controlled magnetic stirrer (optional).
Measuring range
Cond: 0,0 μS …500,00 mS (0,01 μS – automatic)
TDS: 0,01 mg/l…200,0 g/l
Salinity: 0,01…100,0 ppt
Temperature: -10…+120,0 (0,1 °C)
Supplied as standard
Electrode holder stand, conductivity standard, USB cable, multi-socket power supply and user manual.
Specifications
| Accuracy (Salinity) | ±1 % f.s. |
| Accuracy (Temperature) | ±0,2 |
| Magnetic stirrer | Yes, independently controlled |
| Temperature calibration | Yes |
| Temperature coefficent (max) | 0,00 … 10,00 |
| Temperature compensation | 0,0 … +100,0 |
| PC Communication | USB type B |
| Printer connection | RS 232 |
| Stirring speed control | 15 levels |
| Cell constant | 0,1 / 1 / 10 |
| Dimension | 200*165*58 |
| TDS factor | 0,40 … 1,00 |
| Warranty | 3 |
| AQA | Yes |
| Inputs | BNC – RCA |
| Selectable languages | Eng – Ita – Deu – Esp – Fra – Por |
| Memory | 1000 data |
| Parameters | Cond – TDS – Sal – T |
| Password | Yes, 8 numeric characters |
| Weight | 1,255 |
| Salinity measuring range | 0,01 ppm … 100 ppt |
| Cond resolution | 0,01 / 0,1 / 1 (scala automatica) |
| Temperature resolution | 0,1 |
| Timer calibration due with alarm | Si |
| Cell type | 2 rings |
| Stirring speed | 0 … 3000 |
| Max stirring quantity | 2 |
| Power supply | 100 – 240 |
| Supplied as standard | Electrode holder stand, conductivity standard, USB cable, multi-socket power supply and user manual. |
| Accuracy (TDS) | ±1 % f.s. |
| IP rating | 54 |
| Swabs recognised Cond | 84 µS – 147 µS – 1413 µS – 12,88 mS – 111,8 mS |
| Working temperature | 0 … +45 |
| Reference temperature | +15 … +30 |
| Accuracy (Cond) | ±1 % f.s. |
| Display | 4.3″ high-definition, backlit colour TFT |
| Buffer used indication | Yes with icon |
| Calibration points Cond | 1 … 4 automatic values – 1 user value |
| Cond measuring range | 0,00 μS … 500 mS |
| TDS measuring range | 0,1 mg/l … 200 g/l |
| temperature measurement range | -20,0 … +120,0 |
| Calibration Report | Yes, printable |
| TDS unit of measurement | mg/l – g/l | ppm – ppt |
| Unit of measurement Salinity | ppm – ppt | mg/l – g/l |
