pH Meter

Features:

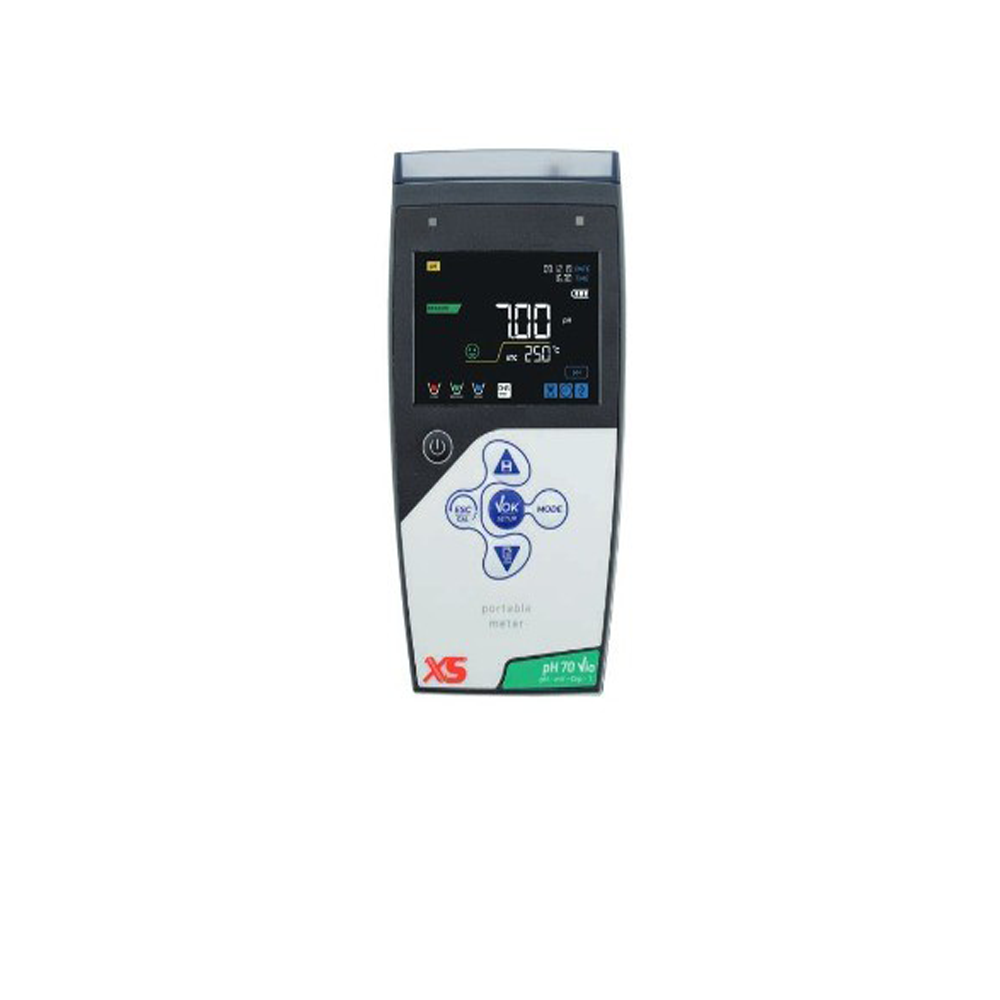

• Professional portable pH meter pH, mV, ORP & temperature measurement.
• Innovative high-resolution color backlit display.
• The guide onboard in setup and calibration mode allows a simple and intuitive use of the device.
• Automatic pH calibration with USA and NIST buffers up to 3 points and 2 points custom defined by the user.
• Automatic ORP calibration in 1 point.
• Indication with icons of the calibrated points.
• Measurement stability indicator and possibility of selecting 3 levels of stability.
• All operations and errors are constantly monitored and shown to the operator via the colored LED above the display.
• GLP Functions: Date and time, recall of calibration data and function “Calibration due”.
• Data logger up to 1000 datas, automatic and manual, PC connect via micro-USB.
• Data software can freely downloadable from website.
• The software allows remote control of the instrument in measure mode, shows all information relating to the instrument and calibrations, data export at the end of the analysis, (also in Excel and PDF format), and the display of measurements in the table and in graphic.
• External printer via RS232 connector.

Specification:

Measuring range:
pH: -2.00 to 16.00
mV: -1000 to +1900
Temperature: -10 to 110.0 °C

Accuracy:
pH: ± 0.02
Temperature: ± 0.5 °C

Resolution
pH: 0.1, 0.01
mV: 0.1 mV
Temperature: 0.1°C

Points of calibration:
pH: 1 to 3 Auto + 2 custom
mV: 1

Others:
Temperature compensation: 0.0 to 100.0 °C
Stability criteria: 3 levels
Standard approved pH: USA – NIST
Display: Backlight color high definition LCD
Timer calibration due: Yes
GLP: Yes
GLP calibration: Yes
Memory: 1000 data
PC Software: freely downloadable|
PC connection: Yes
Output Micro USB: RS 232
Calibration report: Printable
Regulation: CE
IP protection: IP 54
Power supply: 3 AA Batteries 1.5V

Electrode with integrated temperature sensor.
Model: XS 201T

Country of Origin: Switzerland
pH measuring range: 0 to 14 pH
Temperature measuring range:  0 to 60 °C
Body material: Epoxy
Diaphragm: Ceramic
Electrolyte: Gel
Reference system: Ag / AgCl
Temperature probe: Integrated

Accessories:

• pH Electrode with integrated temperature sensor.
• Colored buffer pH7 & pH4.
• Power supply.
• Instructions manual.
• Plastic carrying case.
