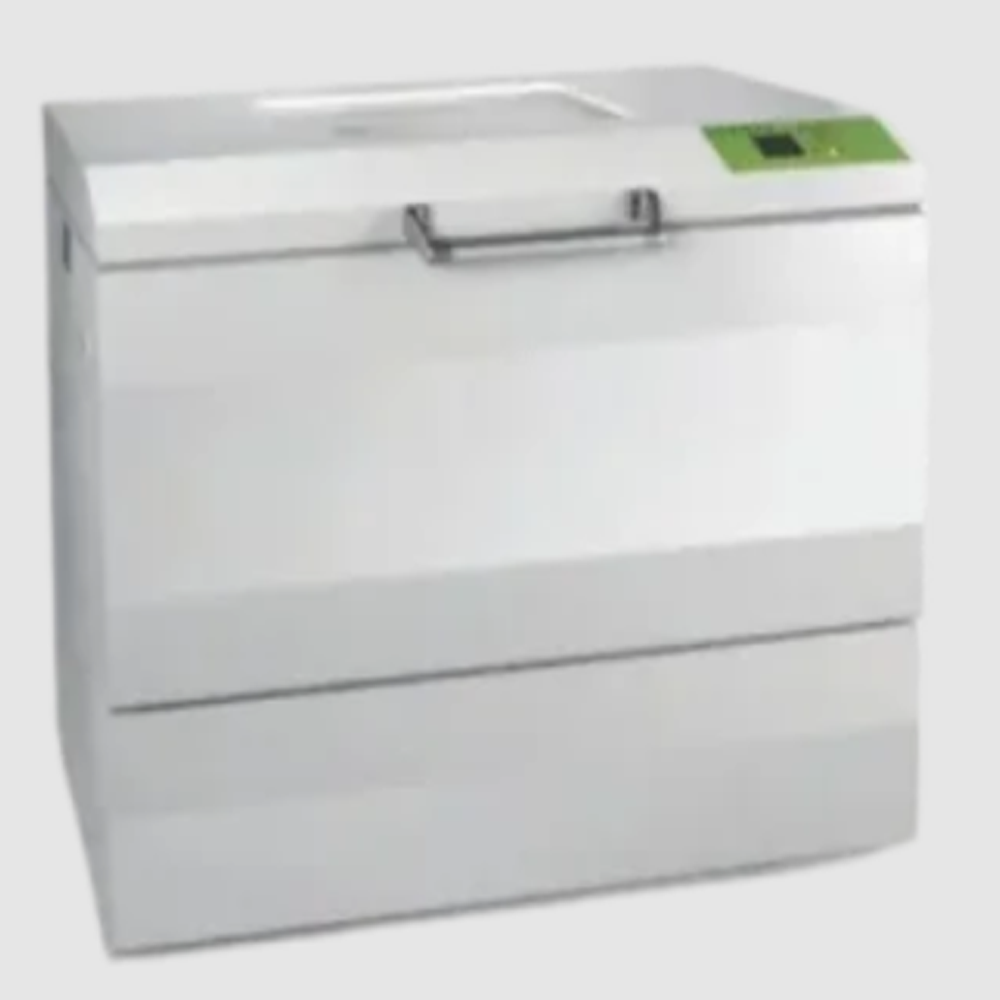

Horizontal Shaking Incubator

The Horizontal Shaking Incubator is a high-performance refrigerated laboratory shaker designed for microbiology, molecular biology, biotechnology, pharmaceutical, and life science research. It combines precise temperature control with uniform orbital shaking, providing an ideal environment for cell culture, bacterial cultivation, fermentation studies, enzyme reactions, and other laboratory applications.

Key Features

Space-Saving Integrated Design: Combines an incubator and orbital shaker into a single unit, reducing laboratory space requirements and overall equipment costs.
Durable Construction: Features a high-quality steel exterior with a polished stainless steel chamber for excellent corrosion resistance and easy cleaning.
Large LCD Display: Clearly displays temperature, shaking speed, and operating parameters for convenient monitoring.
Operation Data Memory: Built-in memory function stores operating parameters, reducing the risk of incorrect operation.
Power Failure Recovery: Non-volatile memory automatically saves settings during power interruptions and resumes operation with the original programmed parameters once power is restored.
Door Safety Protection: Shaking operation stops automatically when the door is opened, ensuring operator safety and protecting samples.
Air Spring Door Support: Equipped with a strong air spring rod for smooth, safe, and effortless opening and closing of the chamber door.
Brushless DC Motor: Provides stable, low-noise, maintenance-free, and reliable shaking performance for long-term laboratory use.
Built-in UV Sterilizer: Integrated UV sterilization system helps maintain a clean and contamination-free chamber environment.
Leakage Protection: Built-in electrical leakage protection enhances operational safety and protects both users and equipment.

Applications:

The Horizontal Shaking Incubator is suitable for a wide range of laboratory and research applications, including:

Microbiology Laboratories – Cultivation of bacteria, fungi, and other microorganisms.
Cell Culture Research – Incubation and shaking of mammalian, plant, and microbial cell cultures.
Molecular Biology – DNA, RNA, plasmid preparation, protein expression, and enzyme reaction studies.
Biotechnology Research – Fermentation, recombinant protein production, and bioprocess development.
Pharmaceutical Laboratories – Drug discovery, microbial testing, quality control, and pharmaceutical research.
Clinical and Medical Laboratories – Sample incubation and diagnostic research.
Food and Beverage Testing – Microbial analysis, food safety testing, and quality assurance.
Environmental Laboratories – Water, wastewater, and environmental microbiological analysis.
Agricultural and Life Science Research – Plant tissue culture, seed research, and agricultural biotechnology studies.
Universities and Research Institutes – Teaching laboratories, academic research, and scientific experiments.
Fermentation Studies – Aerobic culture growth, microbial fermentation, and enzyme production.
Quality Control Laboratories – Routine laboratory testing requiring precise temperature control and continuous shaking.

Specifications:

Specification	AE-LYZ-211B	AE-LYZ-211C
Shaking Speed	20–300 rpm	20–300 rpm
Speed Accuracy	±1 rpm	±1 rpm
Swing Amplitude	Φ26 mm	Φ26 mm
Standard Configuration	500 mL × 28	2000 mL × 12
Maximum Capacity	250 mL × 36 or 500 mL × 28 or 1000 mL × 18	1000 mL × 18 or 2000 mL × 12 or 3000 mL × 8 or 5000 mL × 6
Tray Size	920 × 510 mm	920 × 510 mm
Timing Range	1–9999 min	1–9999 min
Temperature Range	4–60°C (Cooling)	4–60°C (Cooling)
Temperature Accuracy	±0.1°C	±0.1°C
Temperature Uniformity	±1°C	±1°C
Display	LCD	LCD
Tray Included	1	1
Exterior Dimensions (W × D × H)	1200 × 740 × 800 mm	1200 × 740 × 1000 mm
Chamber Dimensions (W × D × H)	970 × 565 × 280 mm	970 × 565 × 480 mm
Chamber Volume	155 L	265 L
Net Weight	174 kg	183 kg
Power Rating	866 W	951 W
Power Supply	AC 220V ±10%, 50–60 Hz	AC 220V ±10%, 50–60 Hz

Benefits of Horizontal Shaking Incubator:

Combines Incubation and Shaking: Integrates temperature control and orbital shaking in one unit, saving valuable laboratory space and reducing equipment costs.
Consistent Experimental Results: Provides precise temperature control and uniform shaking for reliable and reproducible research outcomes.
Improved Sample Growth: Ensures optimal oxygen transfer and nutrient mixing, making it ideal for microbial cultures, cell cultures, and fermentation studies.
Enhanced Laboratory Productivity: Allows continuous incubation and shaking without manual intervention, increasing workflow efficiency.
Reliable Power Recovery: Automatically resumes operation with previously saved settings after a power interruption, protecting ongoing experiments.
User-Friendly Operation: Large LCD display enables easy monitoring and adjustment of temperature, shaking speed, and timer settings.
Safe Laboratory Operation: Door-open protection automatically stops shaking, while leakage protection enhances electrical safety.
Reduced Maintenance: The brushless DC motor delivers quiet, stable, and maintenance-free performance for long-term use.
Improved Hygiene: Built-in UV sterilization helps maintain a clean chamber and reduces the risk of sample contamination.
Versatile Laboratory Applications: Suitable for microbiology, molecular biology, biotechnology, pharmaceutical research, environmental testing, food testing, and academic laboratories.
Durable Construction: Stainless steel chamber and robust steel housing ensure excellent durability, corrosion resistance, and easy cleaning.
Long-Term Investment: Designed for dependable operation with high accuracy, making it a cost-effective solution for research and quality control laboratories.

Why Choose the Horizontal Shaking Incubator?

The Horizontal Shaking Incubator is engineered to deliver accurate temperature control, stable orbital shaking, and dependable performance for demanding laboratory applications. Its integrated incubator and shaker design improves workflow efficiency while reducing laboratory space and operating costs.

Frequently Asked Questions (FAQ):

1. What is the temperature range of the AE-LYZ-211B Series?

The Horizontal Shaking Incubator AE-LYZ-211B Series offers a refrigerated temperature range of 4°C to 60°C, making it suitable for a wide variety of laboratory applications.

2. What is the shaking speed range?

The incubator provides an adjustable shaking speed from 20 to 300 rpm with ±1 rpm accuracy for consistent and reliable sample mixing.

3. What types of flasks can the incubator accommodate?

The AE-LYZ-211B supports up to 250 mL × 36, 500 mL × 28, or 1000 mL × 18 flasks. The AE-LYZ-211C can accommodate up to 5000 mL flasks depending on the configuration.

4. Does the incubator restart automatically after a power failure?

Yes. The incubator features non-volatile memory, which saves the operating parameters and automatically resumes operation after power is restored.

5. Is the incubator equipped with safety features?

Yes. It includes door-open auto-stop protection, power leakage protection, and a built-in UV sterilization system to ensure safe and reliable operation.

6. What is the chamber capacity of the AE-LYZ-211B and AE-LYZ-211C?

The AE-LYZ-211B has a 155 L chamber capacity, while the AE-LYZ-211C offers a larger 265 L chamber for higher sample throughput.

7. What laboratories commonly use this shaking incubator?

This incubator is widely used in microbiology, biotechnology, molecular biology, pharmaceutical research, cell culture, fermentation studies, food testing, environmental laboratories, hospitals, universities, and research institutes.

*Assemble in China.*
