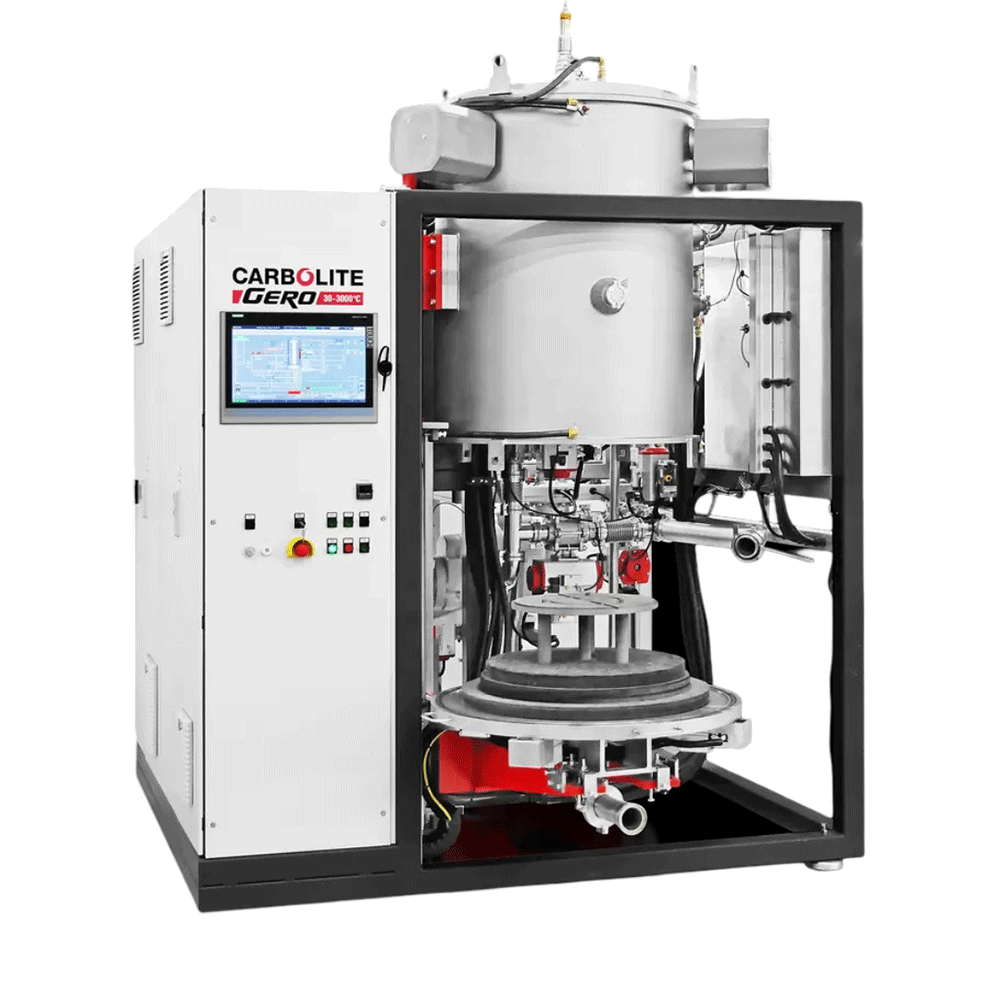

Bottom loading furnace
Model: HTBL 60 MO/16-1G, HTBL 60 W/16-1G
Brand: CARBOLITE GERO
Application Examples:
annealing, brazing, carbonisation, ceramic injection moulding (CIM), debinding, degassing, drying, hardening, metal injection moulding (MIM), pyrolysis, quenching, rapid prototyping, siliconization, sintering, soldering, sublimation, synthesis, tempering
Features:
- Metallic furnaces provide precisely defined atmospheres with the highest possible purity (6 N or better)
- Hydrogen partial pressure operation upon request
- Precisely controlled vacuum pumping speeds appropriate for use with powders
- Fully automatic operation
- Data recording for quality management
Technical details:

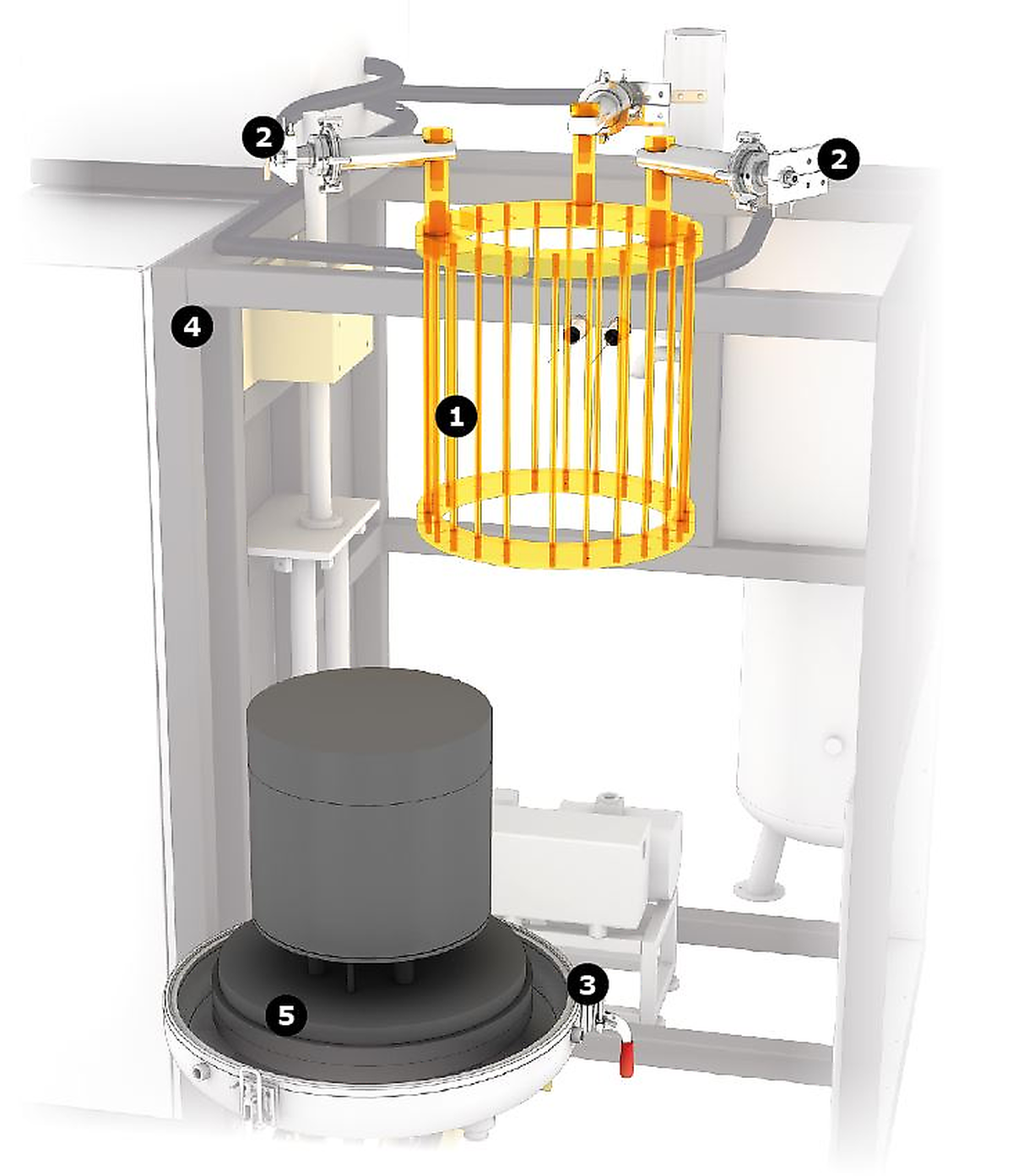

View inside of the HTBL high temperature furnace
- heating elements
- water cooled current
- bottom locking device
- frame
- bottom plate
The HTBL furnace based on metallic materials is equipped with one heating zone (mantle heater) made from tungsten or molybdenum. The radiation shields that provide the heat insulation are constructed of the same material as the heating elements. Standard systems use nine radiation shields surrounding the heating elements. If a lower maximum temperature is required, it is possible to reduce the number of radiation shields. The HTBL, with a diameter of 400 mm and heated length of 500 mm, is well suited for high vacuum processes. Both molybdenum and tungsten exhibit very low vapor pressure even at the highest temperatures. Once the maximum temperature is achieved, the heating elements must be handled with care as they will become brittle.
All HTBL models are equipped with fully automated software and reliable data logging for later evaluation of the process. All process data are measured and logged at predefined intervals. Automated control and high volume units are especially suited for industrial applications and large scale production.
Specifications:
| HTBL 60 MO/16-1G | HTBL 60 W/16-1G | |
|---|---|---|
| Insulation material | Molybdenum | Tungsten |
| Dimensions: External H x W x D (mm) |
3300 x 2400 x 2200 | 3300 x 2400 x 2200 |
| Transport weight (kg) | 3400 | 3600 |
| Usable space | ||
| Volume (litres) | 60 | 60 |
| Ø x H, usable space without retort (mm) | 400 x 500 | 400 x 500 |
| Ø x H, usable space with retort (mm) | 380 x 480 | 380 x 480 |
| Thermal values | ||
| Tmax vacuum (°C) | 1600 | 2200 |
| Tmax atmospheric pressure (°C) | 1600 | 2200 |
| -Delta-T, between 500°C and 2200°C (K) according to DIN 17052 | ± 10 | ± 10 |
| Max. heat-up rate (K/min) | 10 | 10 |
| Cooling time (h) | 5 | 6 |
| Connecting values | ||
| Power (kW) | 80 | 250 |
| Voltage (V) | 400 (3P) | 400 (3P) |
| Current (A) | 3 x 115 | 3 x 360 |
| Series fuse (A) | 3 x 160 | 3 x 500 |
| Vacuum (option) | ||
| Leakage rate – clean, cold and empty (mbar l/s) | < 5×10-3 | < 5×10-3 |
| Vacuum range depending on the pumping unit | rough, fine, high or ultra high vacuum | rough, fine, high or ultra high vacuum |
| Cooling water required | ||
| Flow (l/min) | 64 | 200 |
| Gas supply | ||
| Nitrogen or Argon flow, others on request (l/h) | 500-2000 | 500-2000 |
| Controller | Siemens | Siemens |
