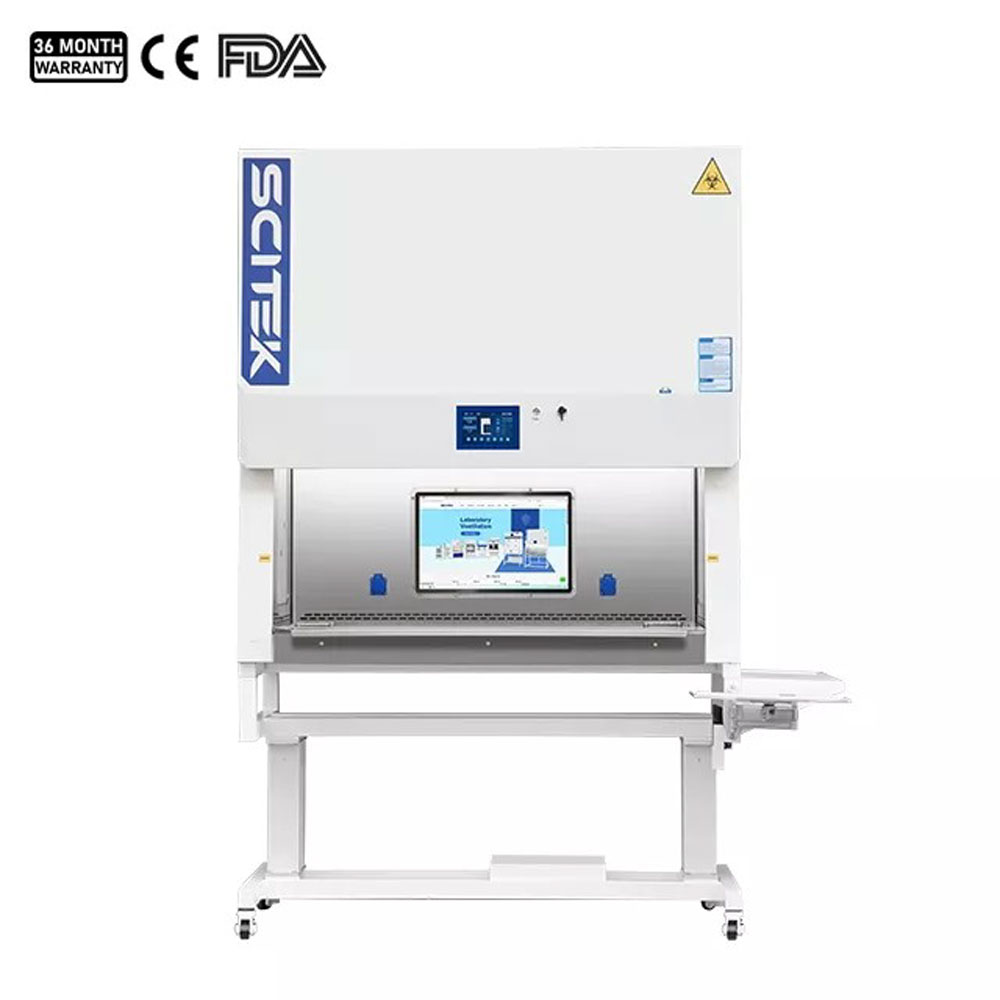

Class II A2 Biological Safety Cabinet, BSC-IIA2-1500HE

Model: BSC-IIA2-1500HE
Brand: SEITEK GLOBAL
Origin: USA

Class IIA2 Biological Safety Cabinet Application:

The Class II A2 biosafety cabinet meets international standards and provides protection for personnel, products,

and the environment. It also innovatively integrates a built-in, ultra-large 21.5-inch touchscreen control system

with abundant expansion interfaces and an external keyboard and mouse holder, thereby reducing user fatigue

during prolonged operation and streamline workflow. Designed to ensure sample sterility and experimental accuracy,

it meets the high-level needs of modern biological laboratories, pharmaceutical R&D, clinical testing and educational

institutions for ease of operation, data traceability and workflow integration.

Class IIA2 Biological Safety Cabinet Advantage:

1. Front window could be fully opened with Max 45° for easy cleaning.

2. Automatic front window with anti-pinch protection, ensures convenient control and safe operation for operators

3. Two side glass provide clear visibility for the entire experimental process and sample observation.

4. 7″ LCD touch screen provides real-time display of the cabinet’s operating status,

ensuring safe and reliable operation.

5. Super Built-in 21.5″ touch screen for more convenient & exact process operation and with USB,HDMI,

DP Internet Pot, PC Plat + keyboard support stand for internal screen to empower operators with innovative

laboratory solutions.(Optional)

6. Optional Electric adjustable base stand allows effortless height adjustment at any time to suit

the operator’s stature. (Optional )

Class IIA2 Biological Safety Cabinet Specification:

Model		BSC-IIA2-1500HE
External Size (W×D×H)		1500×780×2130 mm
Internal Size (W×D×H)		1300×626×600 mm
Tested Opening		Safety height 200mm (8”)
Max.Opening		600 mm
Work Surface Height		800 mm
Control System	Display	LCD touch screen
Control System	Alarm	Abnormal airflow velocity, ULPA filter failure, UV lamp failure, Front window at unsafe height
Airflow System	Airflow Mode	70% air recirculation, 30% air exhaust
	Downflow Velocity	0.35±0.025m/s
	Inflow Velocity	0.52±0.025m/s
	Inflow Air Volume	524 m³/h (309 CFM)
	Downflow Air Volume	1058 m³/h (623 CFM)
	Exhaust Air Volume	524 m³/h (309 CFM)
Air filtration System	ULPA Filter	2 pcs ULPA filter ≥99.9995%, efficiency at 0.1–0.3 μm, filter life indicator
Air filtration System	Cleanliness Grade	Class 10 (ISO14644.1 Class 4)
Cabinet Construction	Main Body	Electro-galvanized steel with antimicrobial Powder Coating
	Work Surface	304 stainless steel
	Front Window	Motorized, toughened glass 6 mm. Anti-UV It can fully opened with Max 45°
	Side Window	Toughened glass 5 mm. Anti-UV
Electrical System	UV Lamp	30 W×1
	UV Lamp	Emission of 253.7 nanometers for most efficient decontamination, UV life indicator, UV timer
	LED Lamp	24 W×2
	Max.Consumption	750 W (Not include socket loading power consumption)
	Fan power	650 W
	Power Supply	AC 220±10% V, 50/60 HZ; 110±10% V, 60 Hz
Illumination		≥1000 Lux
Sound Emission		≤65 dB(A)
Standard Accessory		1.Base Stand; 2.Air Velocity Sensor; 3.ULPA Filter; 4.LCD Touch Screen; 5.LED Lamp×2; 6.UV Lamp×1; 7.Waterproof Socket×2; 8.Motorized Front Window; 9.Two Side Window; 10.Footmaster Caster; 11.Foot Switch; 12. Electric Air Valve Control; 13. Magnetic file folder.
Optional Accessory		1. Built-in 21.5″ Touch Screen; 2. USB,HDMI, DP Internet Pot, PC Plat + keyboard support stand; 3. Electric Height Adjustable Base Stand; 4. Gas Tap; 5. Water Tap; 6. Arm rest; 7. Upgraded LED lamp; 8. Anti-pinch hand function of front window;
Net Weight		290 kg
Gross Weight		380 kg
Shipping Size (W×D×H)		2050×1220×1870 mm
Shipping Volume		4.7 m³

*Assemble in China.*
